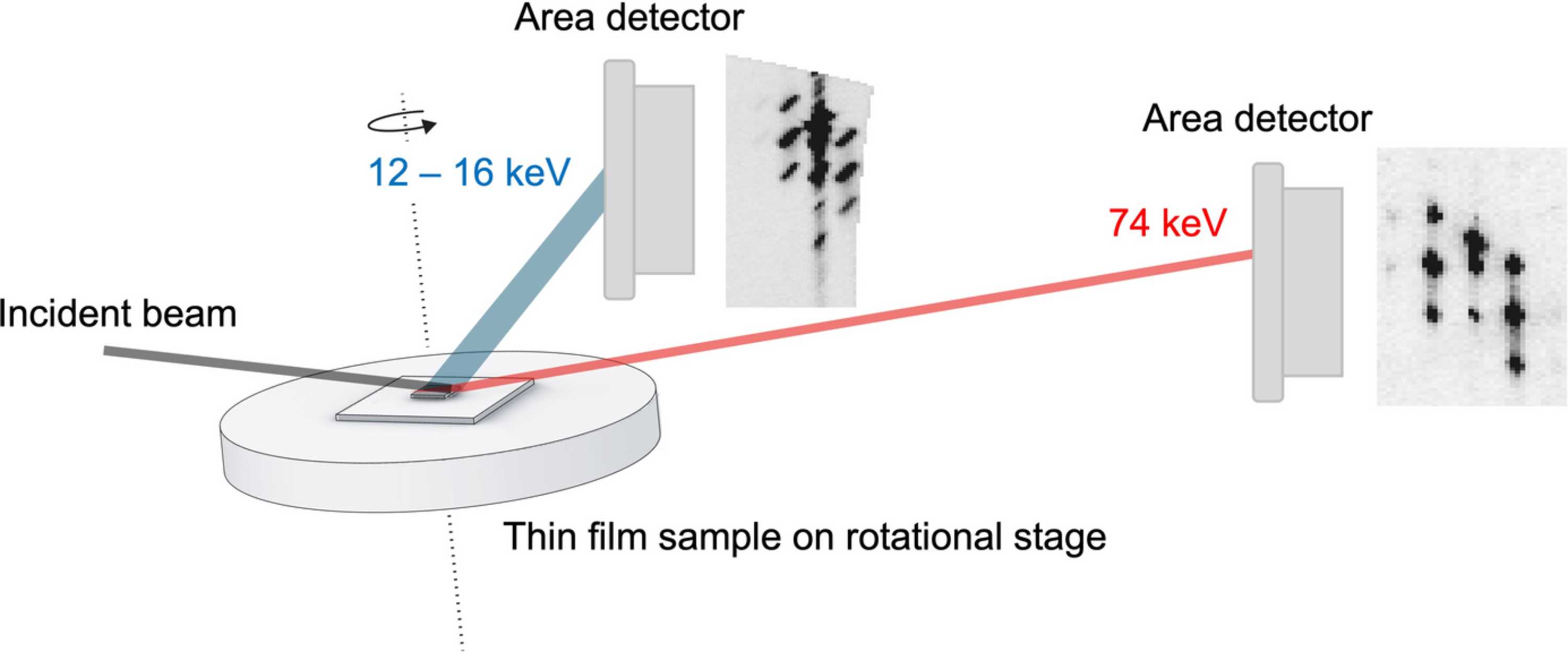

Figure 5
Schematic comparison of ME-GID (blue) and HE-GID (red) experiments with the same incident angle. The large scattering angle of the moderate-energy X-rays leads to a large footprint of the beam on the detector, causing a smearing effect as shown for the example of the 032 reflection environment. The small scattering angle of the high-energy X-rays with sufficiently long SDD significantly improves the reciprocal-space resolution, as shown in the corresponding reflection.
