Figure 3

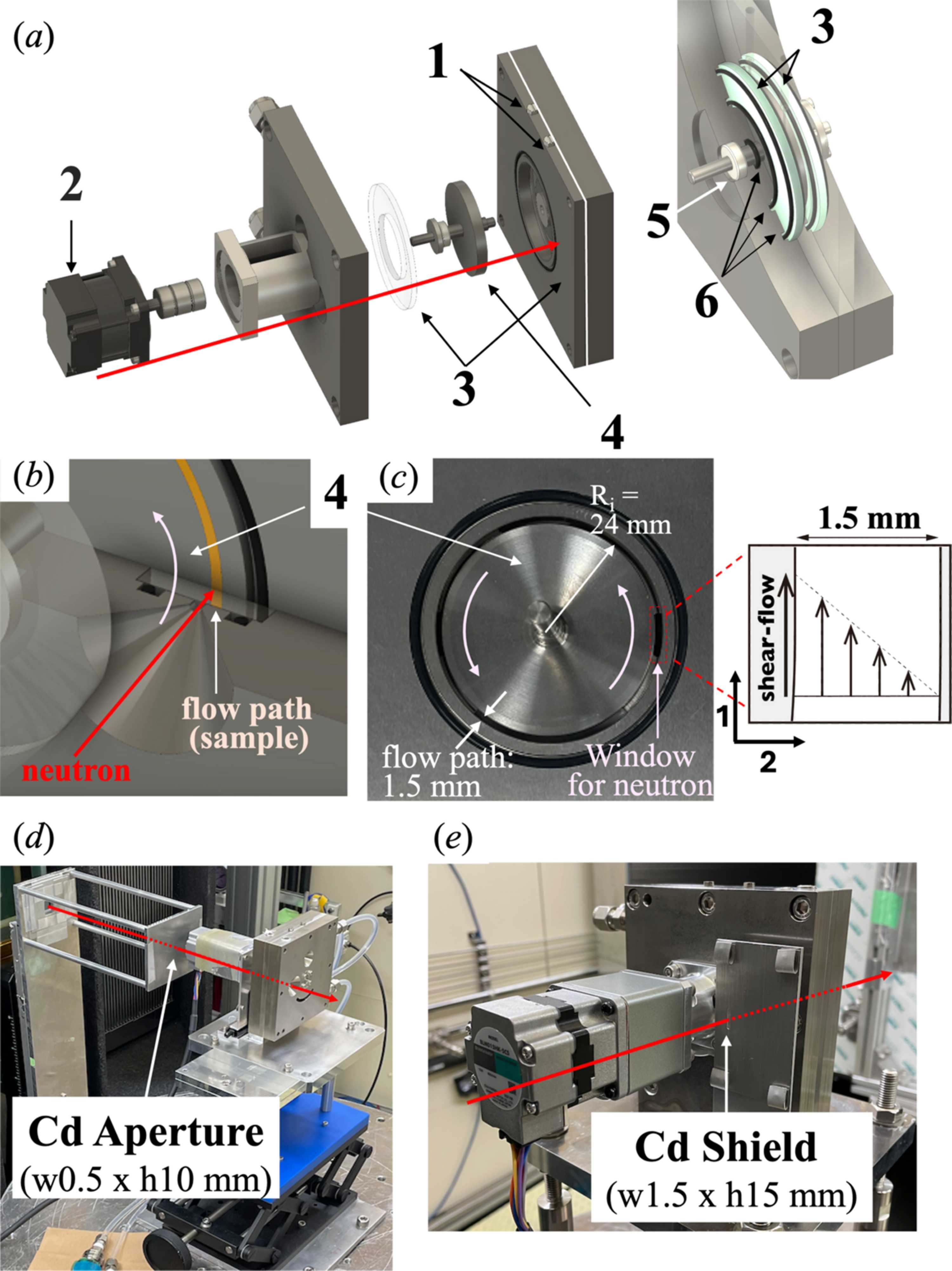

(a), (b) Schematic drawing of the 1–2 shear cell. (1) Sample inlets, (2) a brushless motor, (3) donut-shaped quartz glass windows (thickness of 3 mm), (4) a rotor, (5) a bearing, (6) O-rings. Photographs of (c) the rotor and neutron-irradiated area (dashed red window), (d) the Cd aperture, and (e) the Cd shield.
