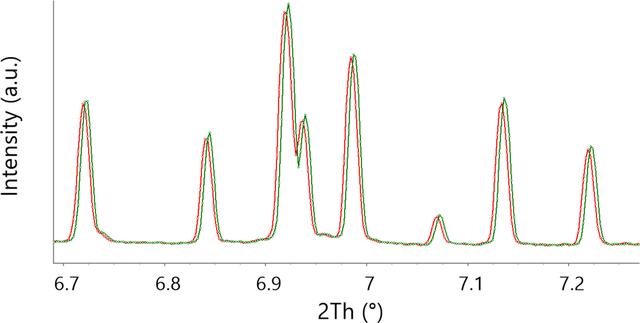

Figure 11
Effect of a wrong calibration on radially integrated peaks, illustrated by an angle-dependent shifted pattern (in red) with respect to the correct values (in green). The errors in the peaks' positions are non-linear with the angle but of the same order of magnitude as the peaks' FWHMs. While fingerprinting was correct, the refinement of the patterns was not converging as the peak positions are not simply shifted but affected by a more complex function.
