Figure 2

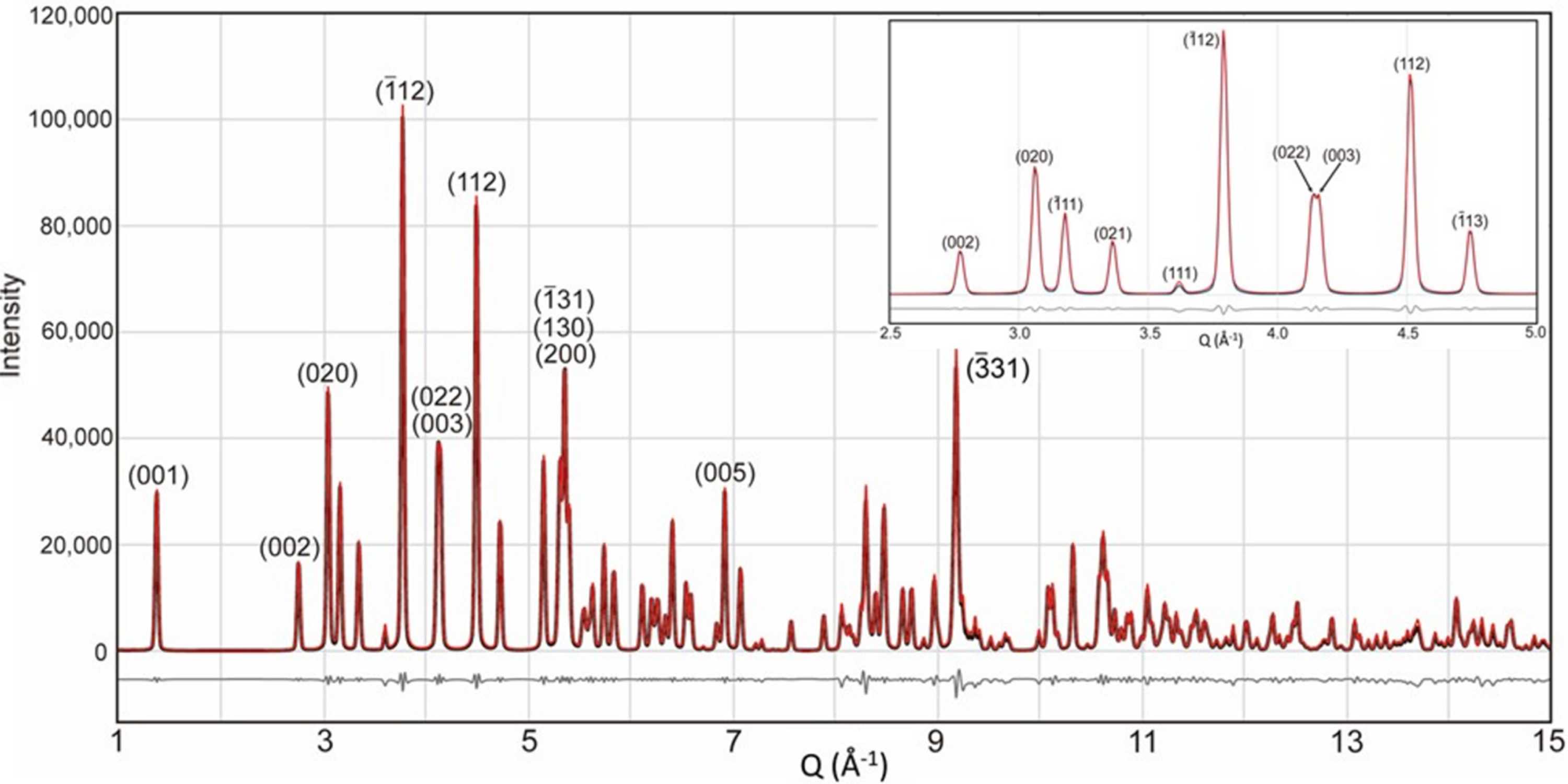

Synchrotron XRD pattern of the studied illite. Experimental data are shown in black, and the calculated pattern from Rietveld refinement is shown in red. The gray line below the patterns represents the residual difference between the experimental and calculated data. The inset in the upper right corner shows a magnified view of the 2.5–5 Q region. Indices (hkl) corresponding to the 1Mtv illite structure are indicated. The goodness-of-fit is 7.15%.
