Figure 1

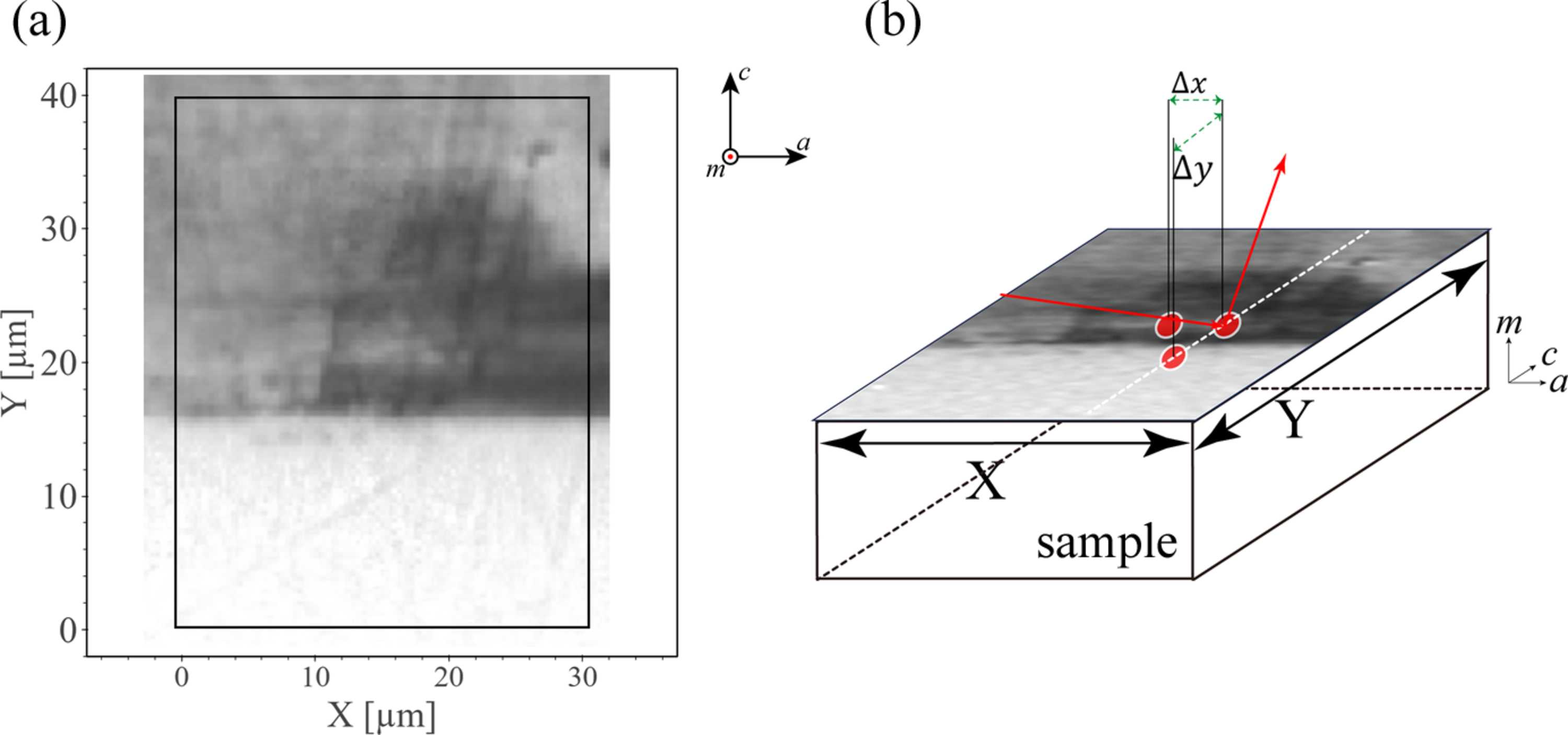

Sample and experiment setup. (a) Cross-sectional MPPL image of the HVPE GaN sample. The interface between the thick HVPE-grown film and the GaN substrate is located at around Y = 15 µm. The nanoXRD measurement area is marked by a rectangle. (b) Schematic of the diffraction geometry and the spatial step between sampling points of ΔX = ΔY = 1 µm with an angular step of δω = 0.002°.
