Figure 3

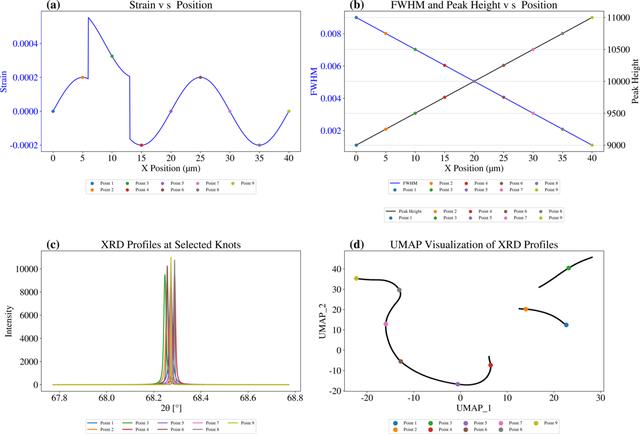

UMAP ability on synthesized 1D nanoXRD profiles with varying continuity. We synthesized the distribution of (a) strain and (b) FWHM and peak height versus X position. Selected points are marked in panels (a), (b) and (d). We insert a new strain state at X ∈ [6 µm, 13 µm]. (c) Sampled XRD profiles at selected positions. (d) UMAP plot of reduced 1D nanoXRD profiles.
