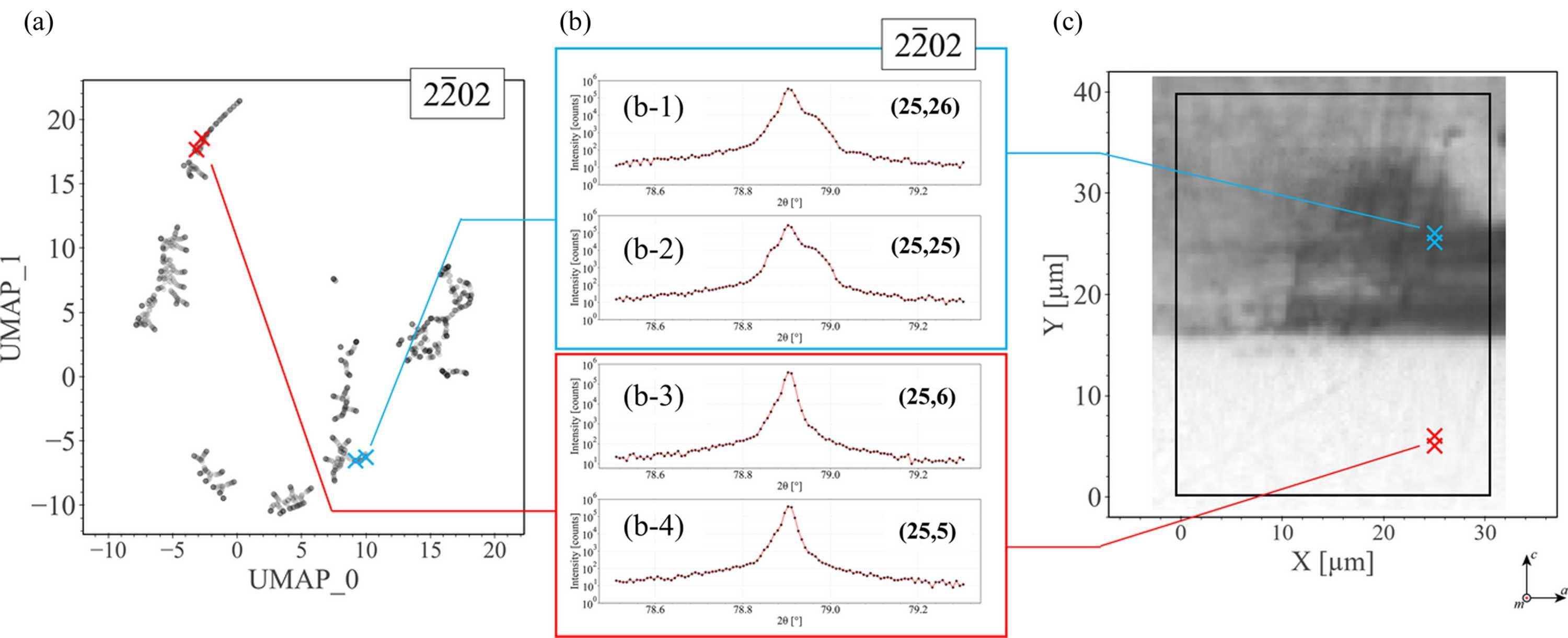

Figure 5
Comparison between UMAP results and conventional 1D diffraction profiles. (a) UMAP plot for [(2 {\overline 2} 02)] diffraction planes. Blue × markers correspond to the 2θ intensity profiles shown in panels (b-1) and (b-2), while red × markers correspond to those shown in panels (b-3) and (b-4). (c) Red and blue × markers show the corresponding diffraction positions in the sample.
