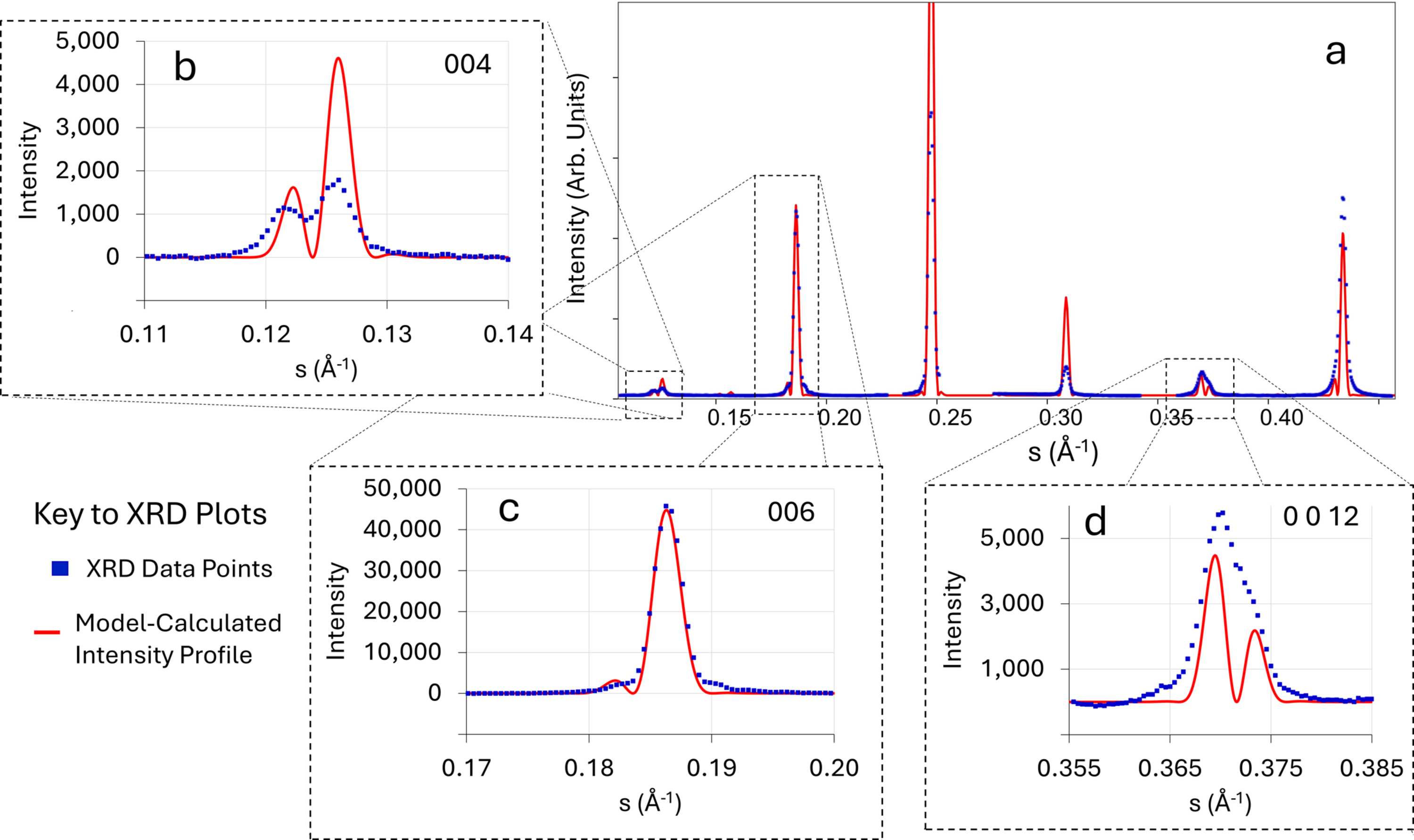

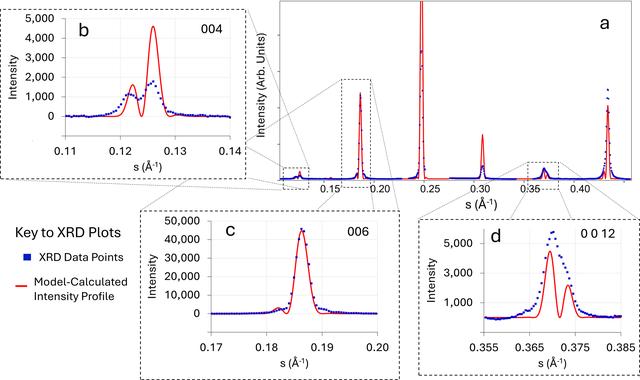

Figure 10
(a) The calculated diffracted intensity profile (in red) from the OPB model described in the main text, using the `modified Hervoches' positions for the Bi atoms listed in Table 2[link], compared with the background-subtracted experimental XRD data points (blue dots) taken from the epitaxial BiT thin film represented by the TEM images in Figs. 2[link] and S1. Plots (b), (c) and (d) represent expanded views of the model/data comparison for the 004, 006 and 0 0 12 reflections, respectively.
