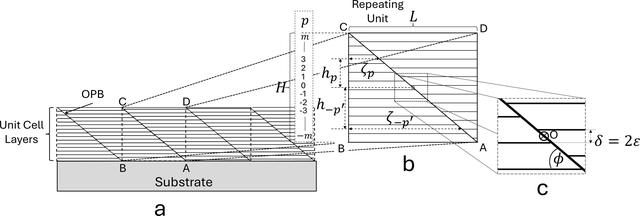

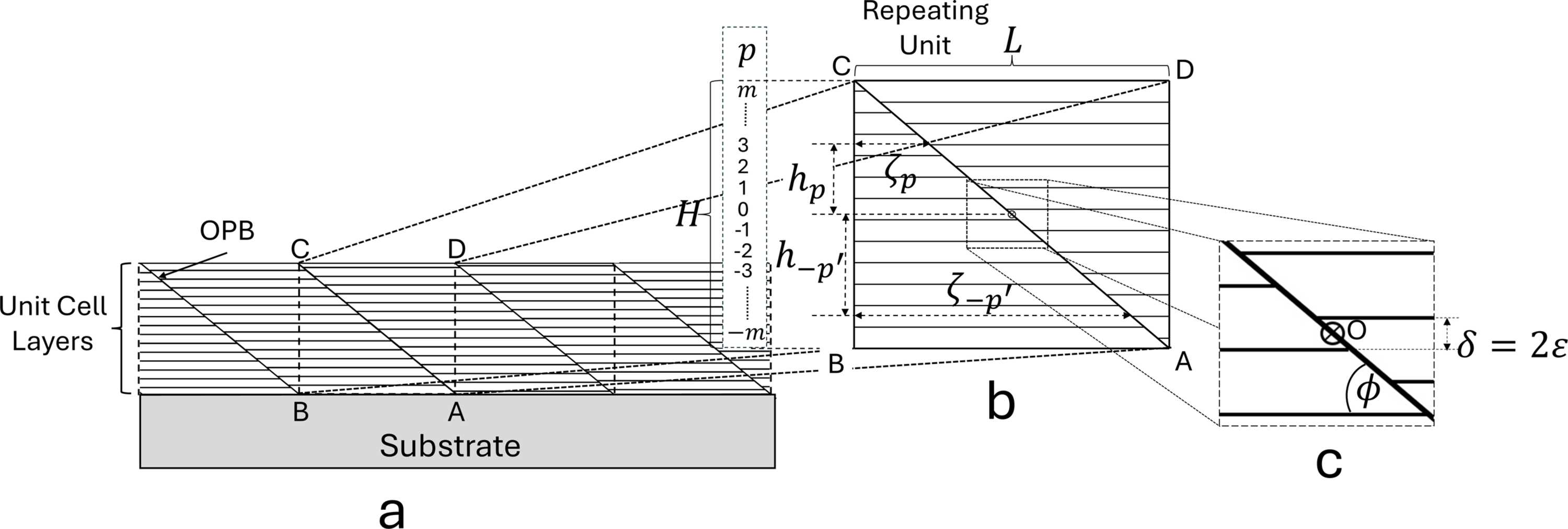

Figure 4
(a) A schematic representation of an array of OPBs in a thin film of a layer-structured material grown onto a substrate. The thin film is divided up into a set of identical repeating units. (b) A magnified representation of one of the repeating units indicating the dimensions used in the modelling described in the main text. (c) Defining the angle [\phi] made by the OPB with the line AB (parallel to the layers of the structure) and showing the centre (O) of the region ABCD

Journal logoJOURNAL OF
APPLIED
CRYSTALLOGRAPHY
ISSN: 1600-5767
Volume 58| Part 4| August 2025| Pages 1191-1204
https://doi.org/10.1107/S1600576725004091
