Figure 5

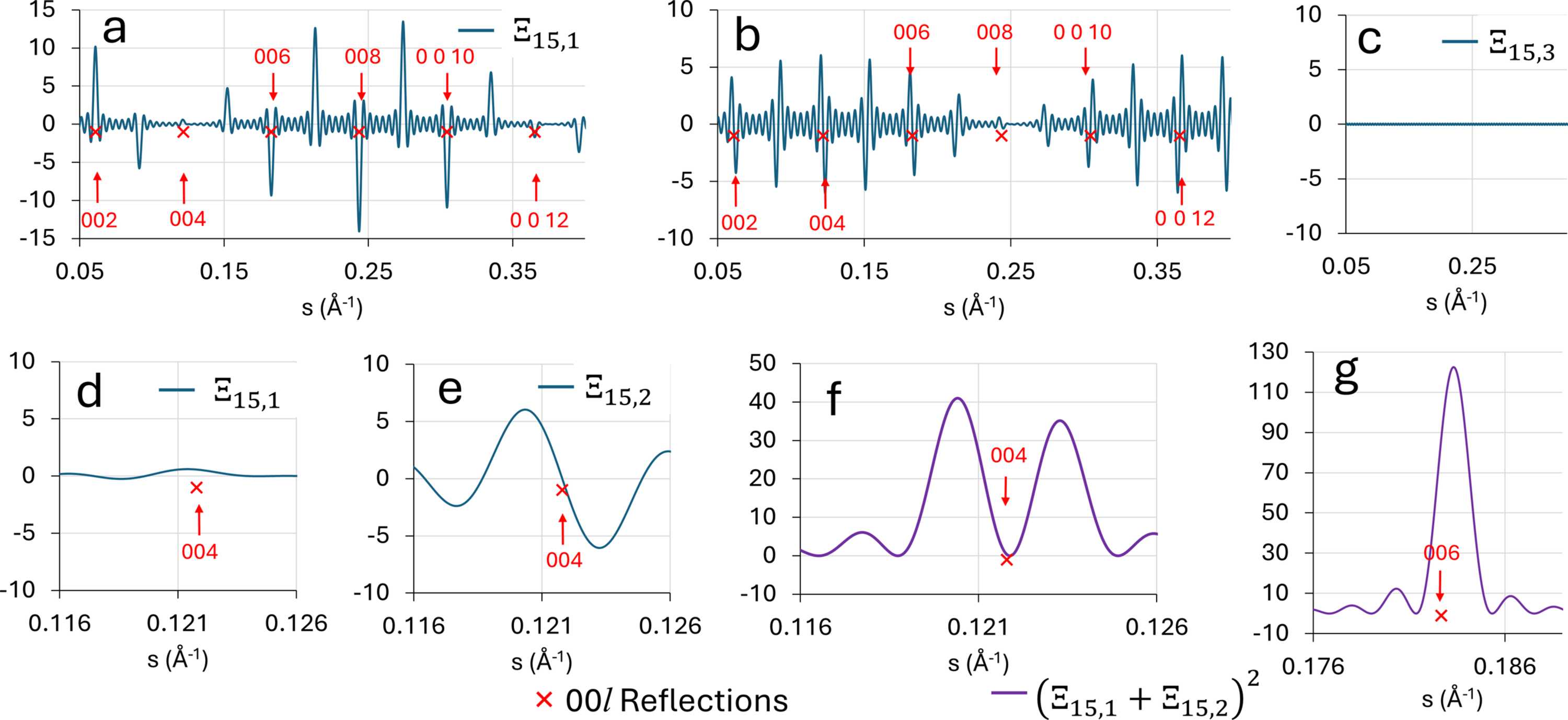

Plots of the functions (a) [{{{\Xi}}_{15,1}}], (b) [{{{\Xi}}_{15,2}}] and (c) [{{{\Xi}}_{15,3}}}], as defined in the main text, plotted for the BiT crystal structure with OPB defects: c = 32.8425 Å, [\delta] = 4 Å and N = 15. The positions of the 00l reflections where [s = c/l] are marked with red crosses and labelled. Plots (d) and (e) show the functions [{{{\Xi}}_{15,1}}] and [{{{\Xi}}_{15,2}}], respectively, in greater detail around the BiT 004 reciprocal lattice point. Plots (f) and (g) show the function [{\left({{{{\Xi}}_{15,1}} + {{{\Xi}}_{15,2}}} \right)^2}] plotted around the BiT 004 and 006 reciprocal lattice points, respectively.
