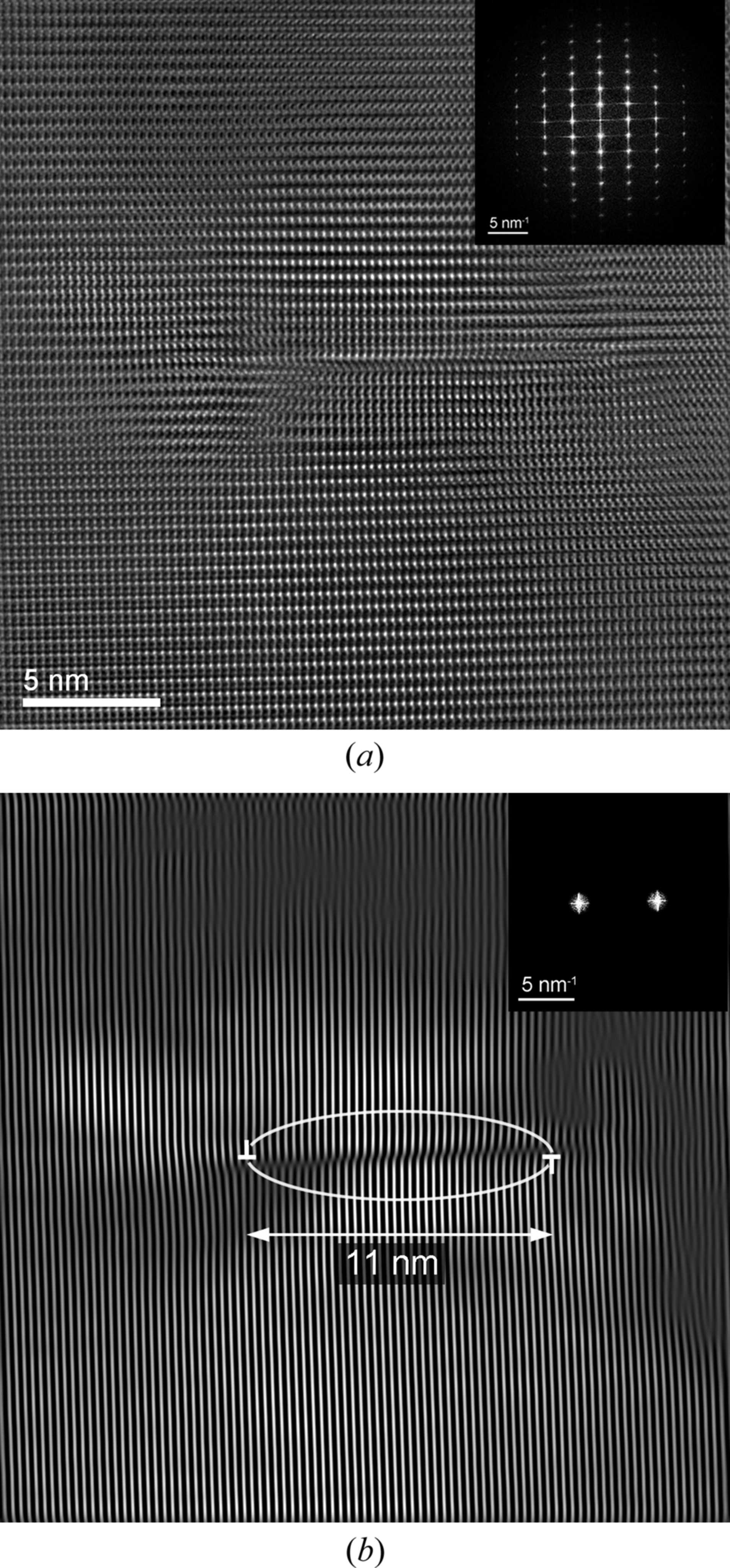

Figure 10
(a) Average background subtraction filtered HR-TEM image and corresponding FFT of a region containing an isolated dislocation loop. (b) Image filtered using the [1\overline{1}00] symmetrical reflections. A scheme showing the approximate positions of the two opposing 60° segments of the dislocation is superimposed on the image.
