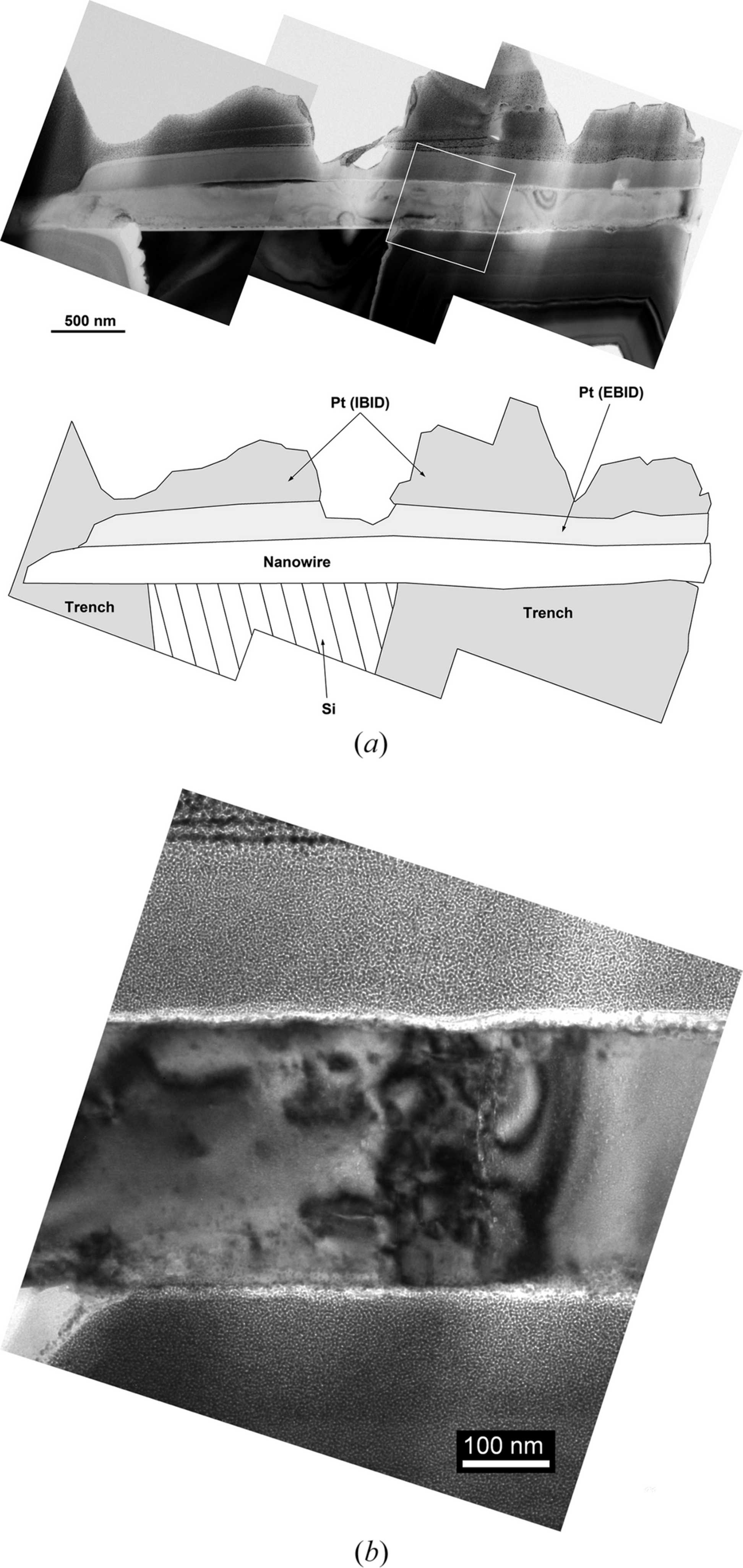

Figure 7
(a) Assembly of bright field (BF) TEM images of the plastically deformed ZnO NW, observed in cross section, with accompanying schematic showing the key parts. (b) Higher-magnification BF image of the area marked by a square in the top image. This zone, located at the edge of the trench, contains numerous extended defects.
