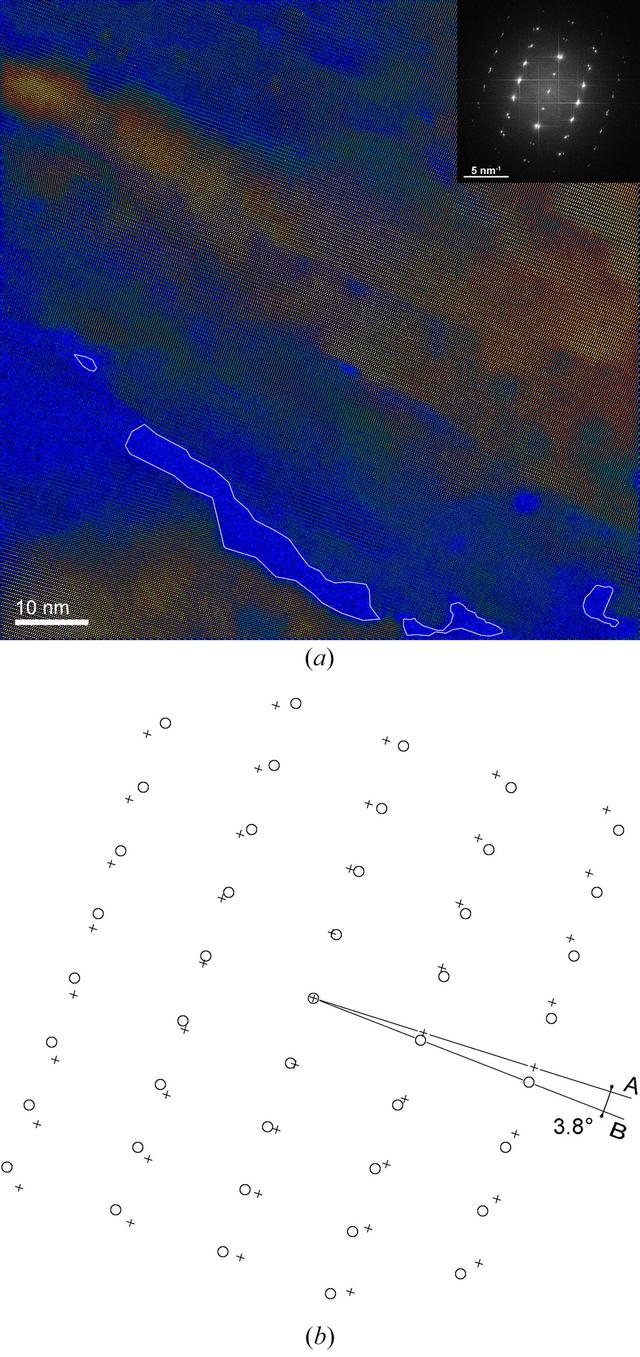

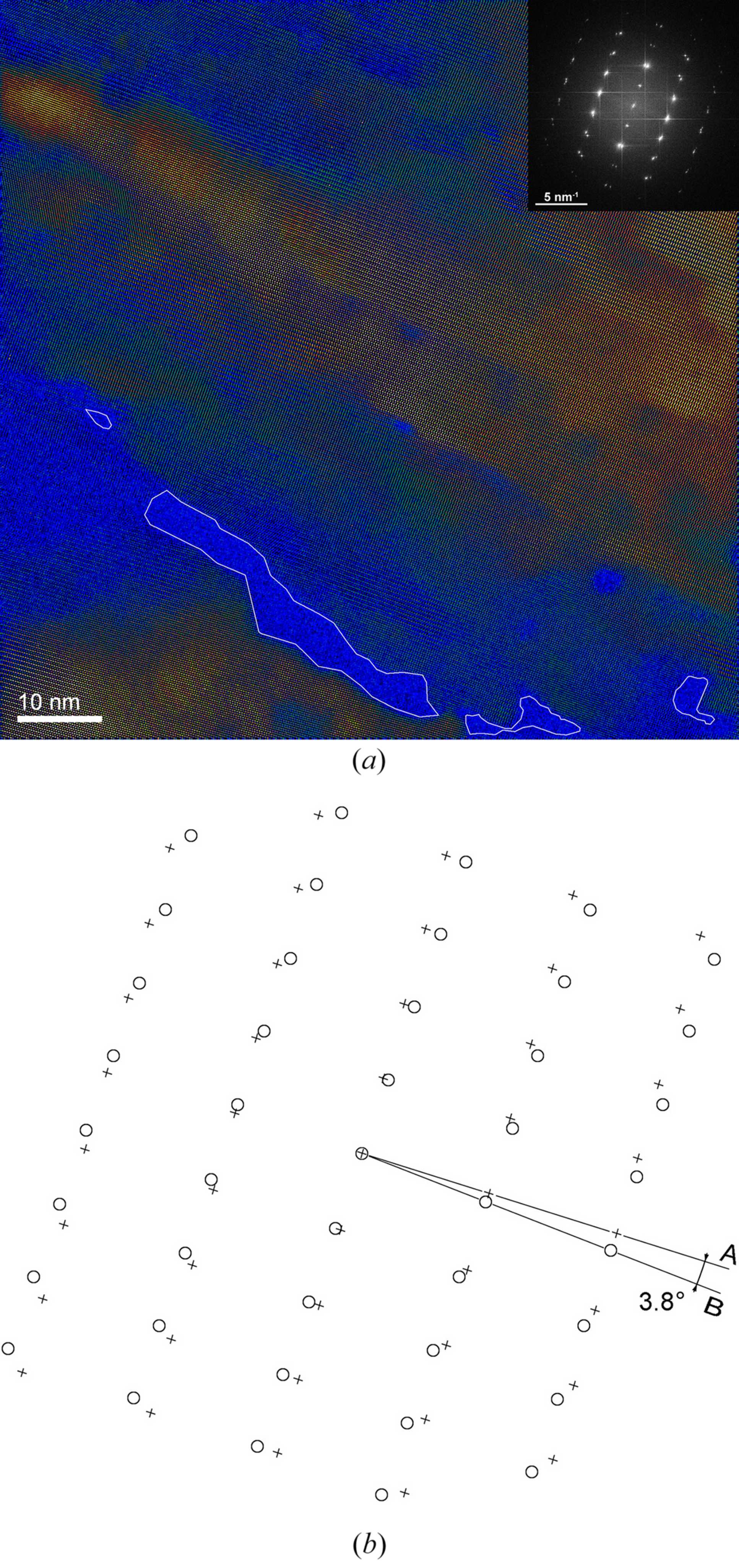

Figure 8
(a) HR-TEM image filtered using the average background subtraction filtering method. The intensity is shown in colorscale. Two differently oriented crystalline parts of the NW are separated by a disordered transition zone containing microcracks (see highlighted areas). (b) Schematic drawing of the spots observed in the FFT of the image [inset in (a)]. The two crystalline parts are parallel to the [[2\overline{1}\,\overline{1}0]] crystallographic axis and rotated by an angle of 3.8° with respect to each other.
