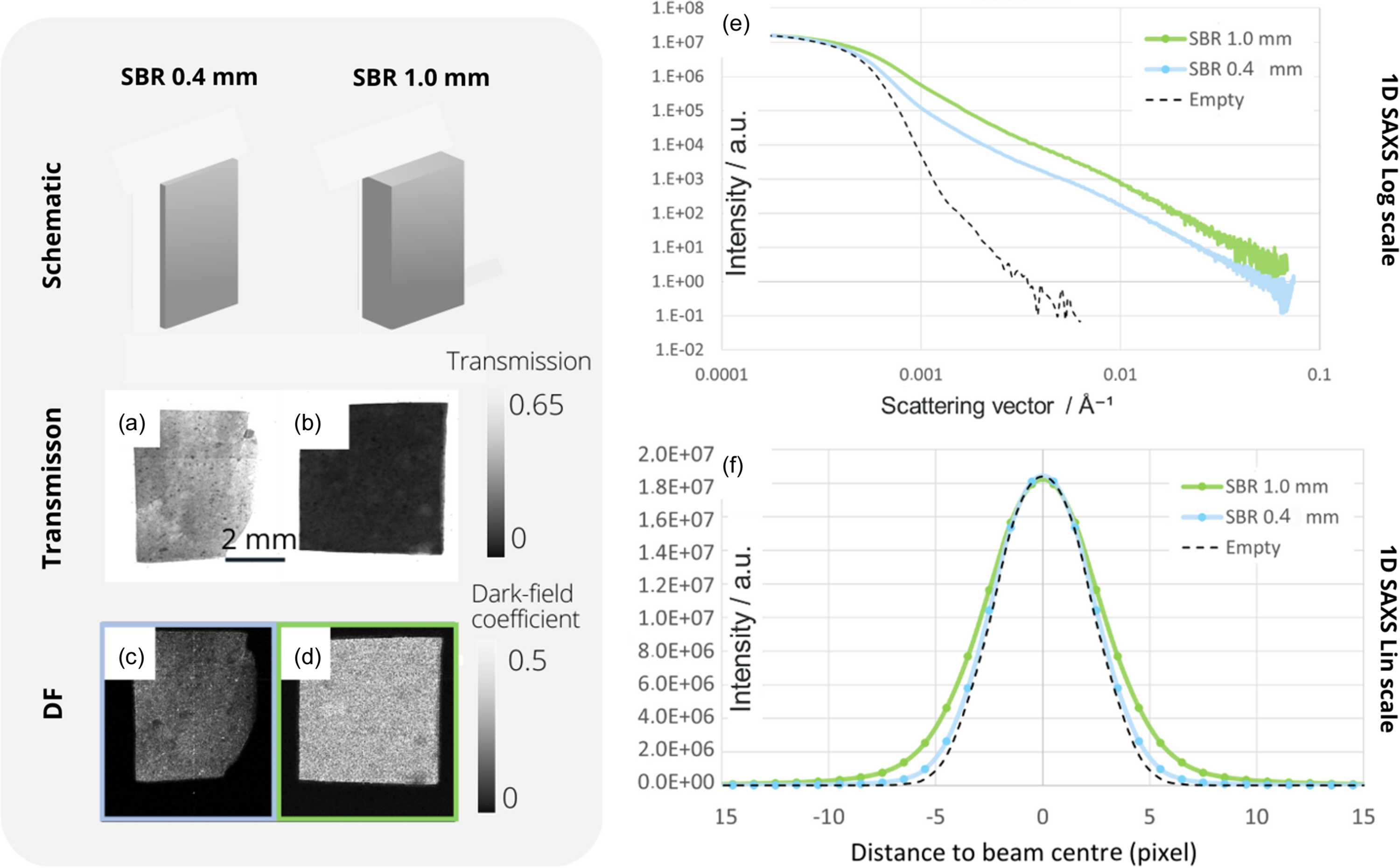

Figure 3
(a) and (b) Transmission and (c) and (d) DF images from SBR samples of two different thicknesses. (e) and (f) One-dimensional SAXS azimuthal integrations, (e) on a logarithmic scale as a function of q and (f) on a linear scale as a function of distance from the beam centre to represent SAXS beam broadening. The sample-to-detector distance is 2500 mm for all measurements.
