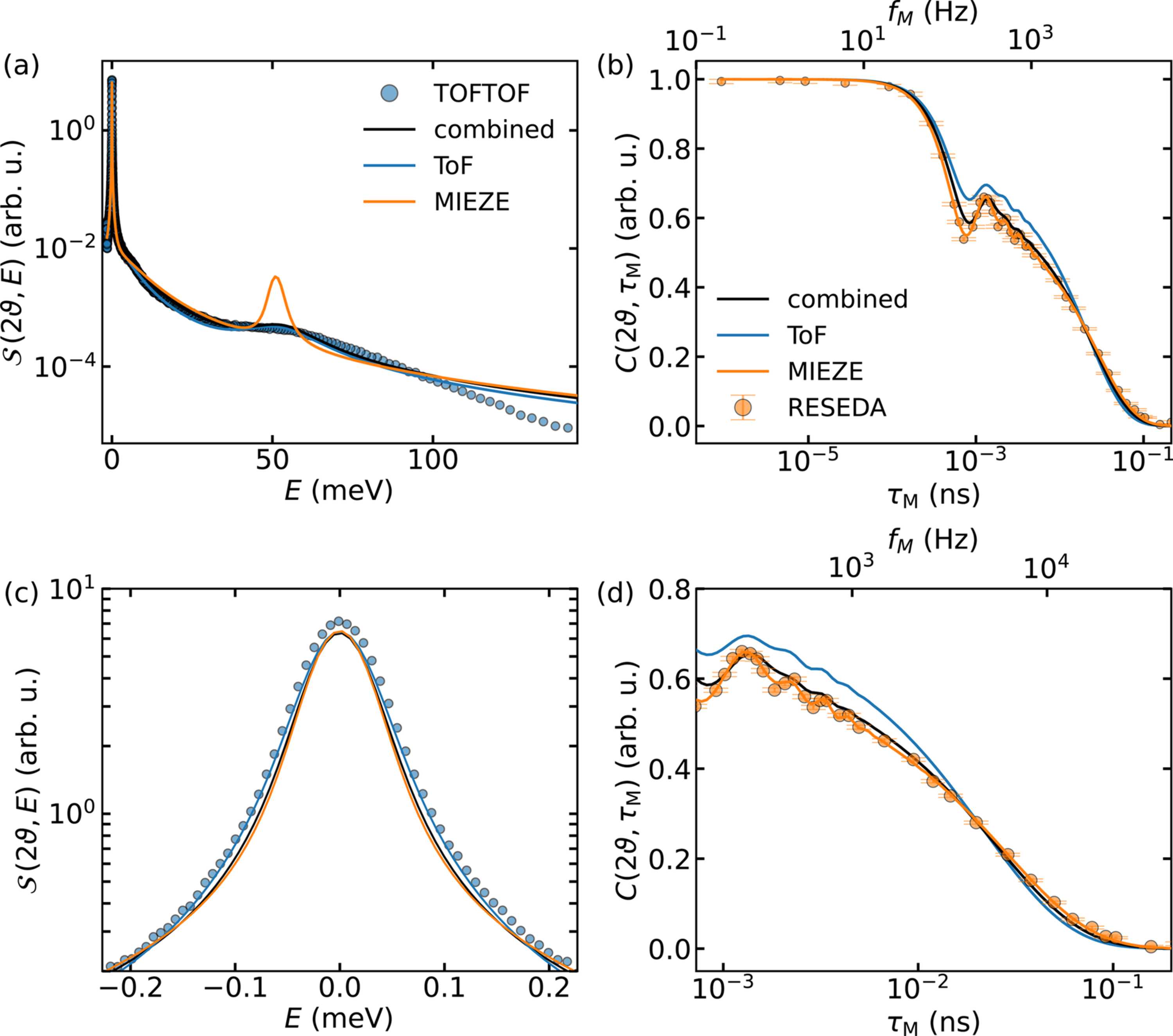

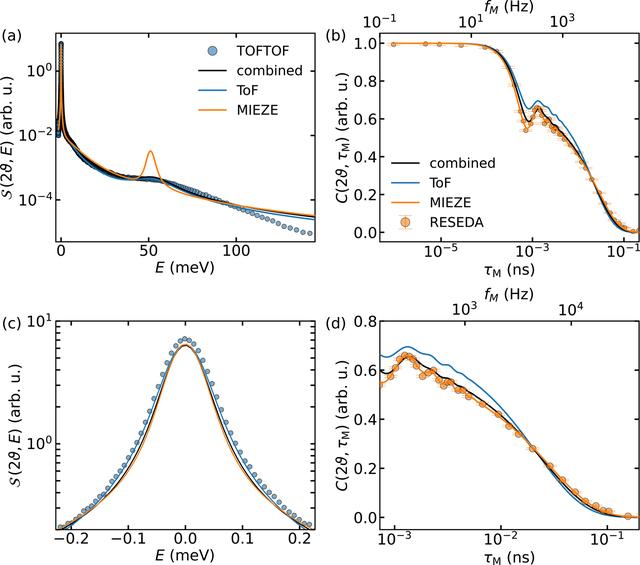

Figure 7
Results of fitting the 3Q1I model. The points in blue and orange visualize measurements on the TOFTOF and RESEDA spectrometers, respectively. Where error bars are not shown, they are significantly smaller than the size of the markers. The solid lines represent the results of the fit analyses. The orange line represents the fit of the RESEDA data, convoluted with the instrument resolution for comparison with the TOFTOF data. Similarly, the blue line represents the fit of the TOFTOF data, transformed for comparison with the RESEDA data. The fit of the MIEZE data is insensitive to the inelastic scattering contribution, which is why the amplitude is overestimated to improve the fit at low energy transfers. The black line shows the result of the combined fitting. Panels (a) and (b) show the entire dynamic range of both measurements, whereas panels (c) and (d) give more detailed views of the parameter space where the SE approximation is valid.
