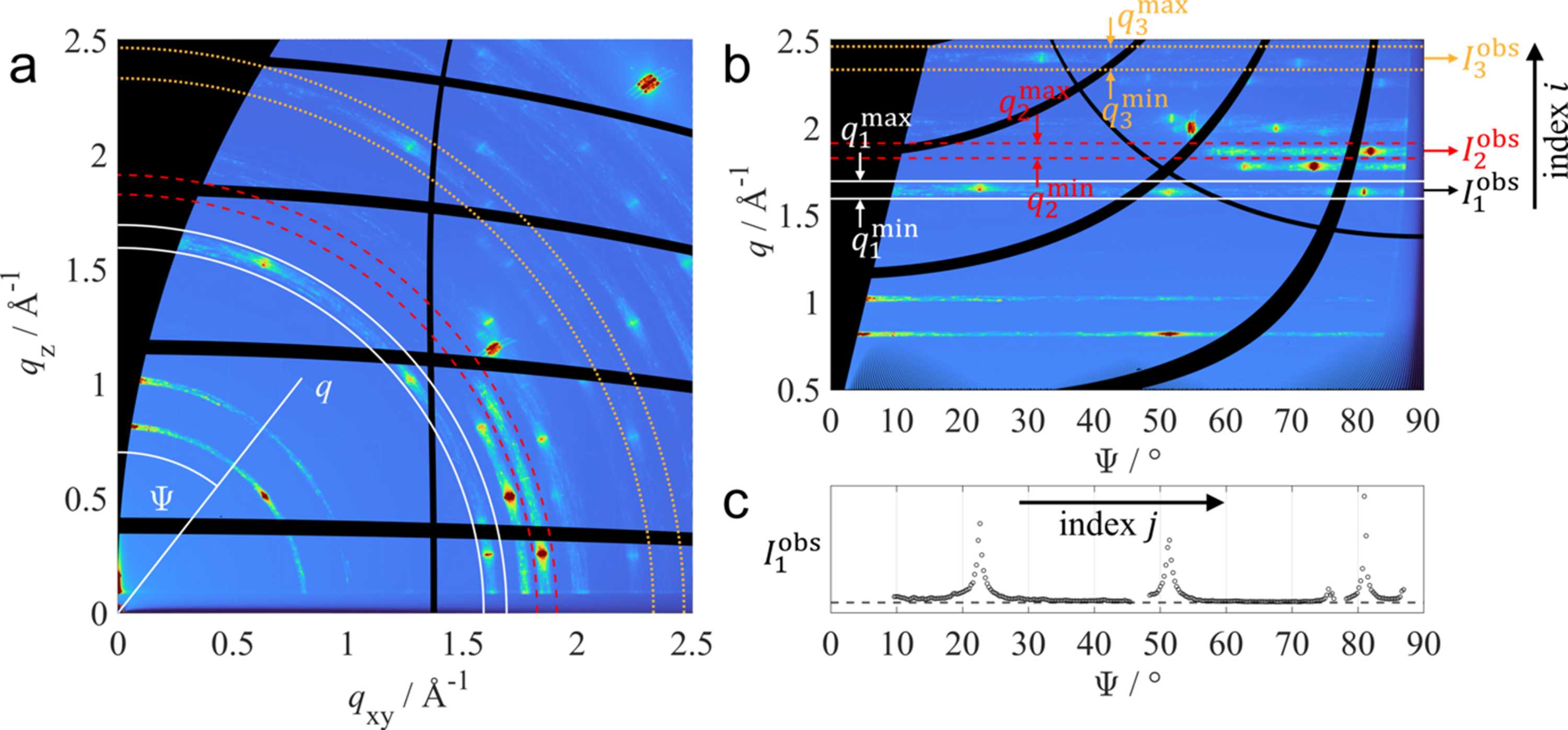

Figure 3
Measured GIXD data of an anthraquinone thin film presented in (a) cylindrical reciprocal-space coordinates $[({{q_{xy}},{q_{z}}} )]$ and (b) spherical reciprocal-space coordinates $[({\psi, q} )]$ . The white, red and orange lines indicate the integration limits q_i^min and q_i^max used to compute the radial line profiles $[I_i^{{\rm{obs}}}(\psi )]$ . Data above and below the limits are used to perform a local background correction of each radial line profile. (c) Radial line profile $[I_1^{{\rm{obs}}}(\psi )]$ obtained after background correction and numerical integration between q₁^min and q₁^max. The individual data points along a radial line profile are indexed with j.
