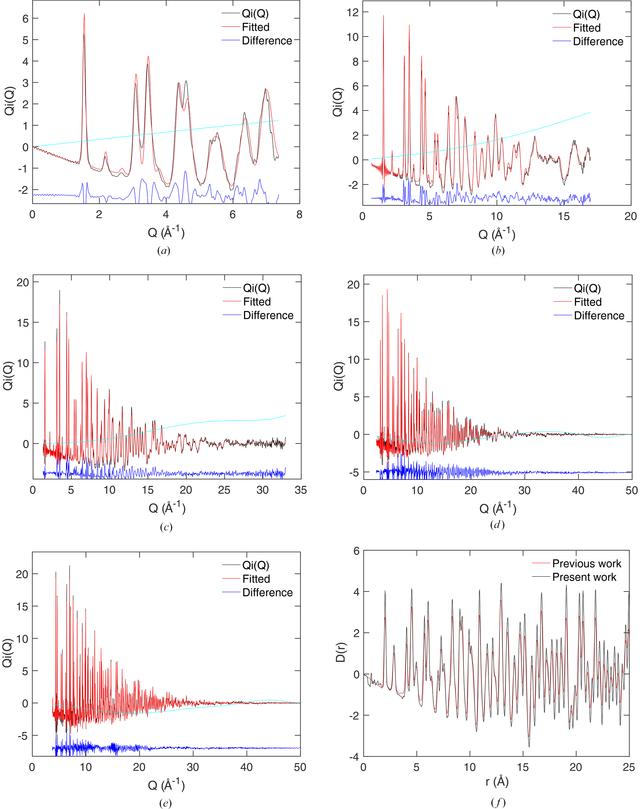

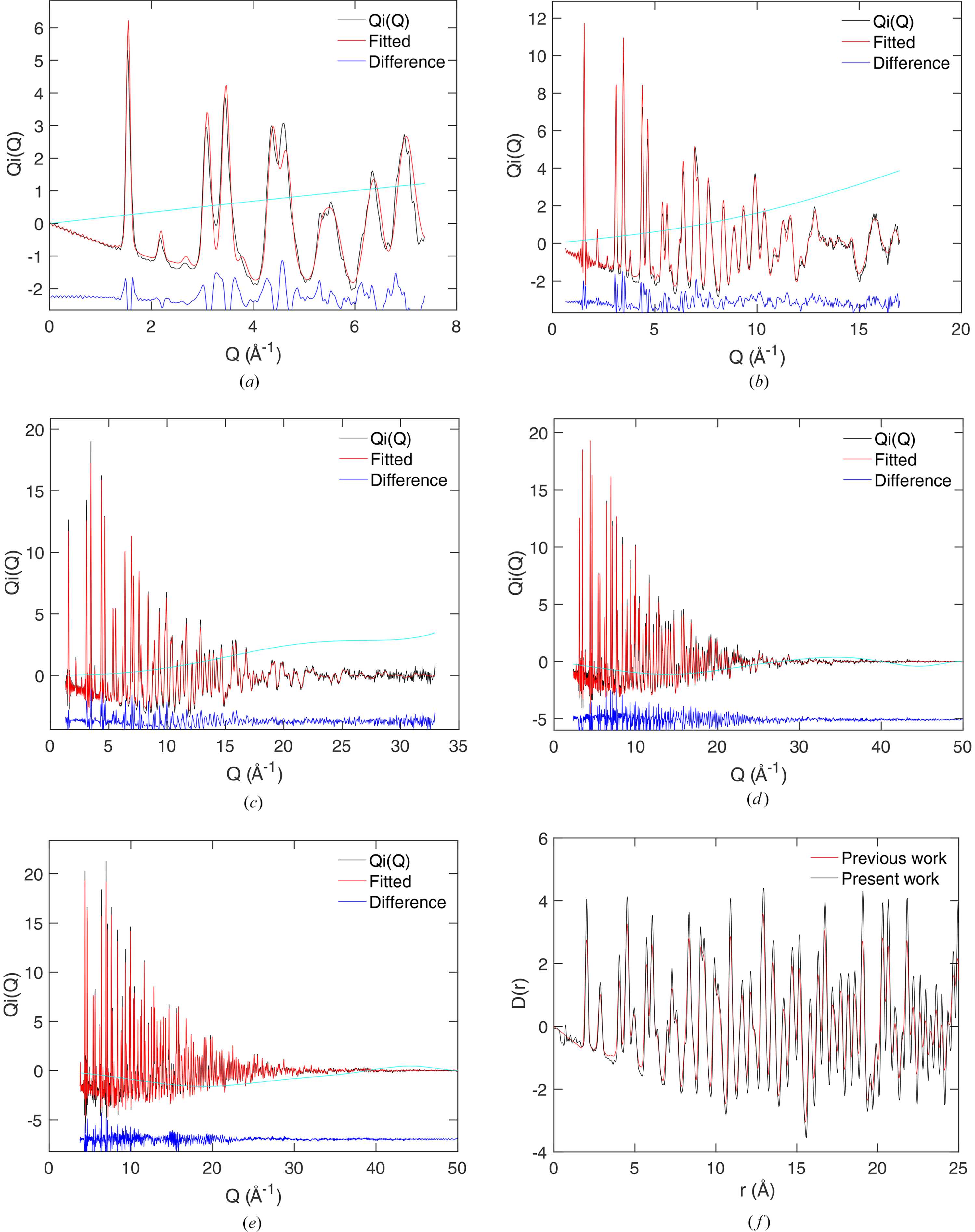

Figure 8
(a–e) Fitted neutron scattering function, Qi(Q), for ScF3 measured at a temperature of 10 K, showing data from five detector banks (Dove et al., 2020BB11). The black and red curves are the experimental data and fitted function, respectively, with the blue curves, displaced downwards, showing the differences. The cyan curves show the extraneous scattering removed by fitting Chebyshev polynomials. (f) The resultant PDF D(r) obtained by recombining the Hermite functions, black curve, compared with the PDF obtained from the same data reported earlier (Dove et al., 2020BB11; Dove & Li, 2022BB10), red curve.
