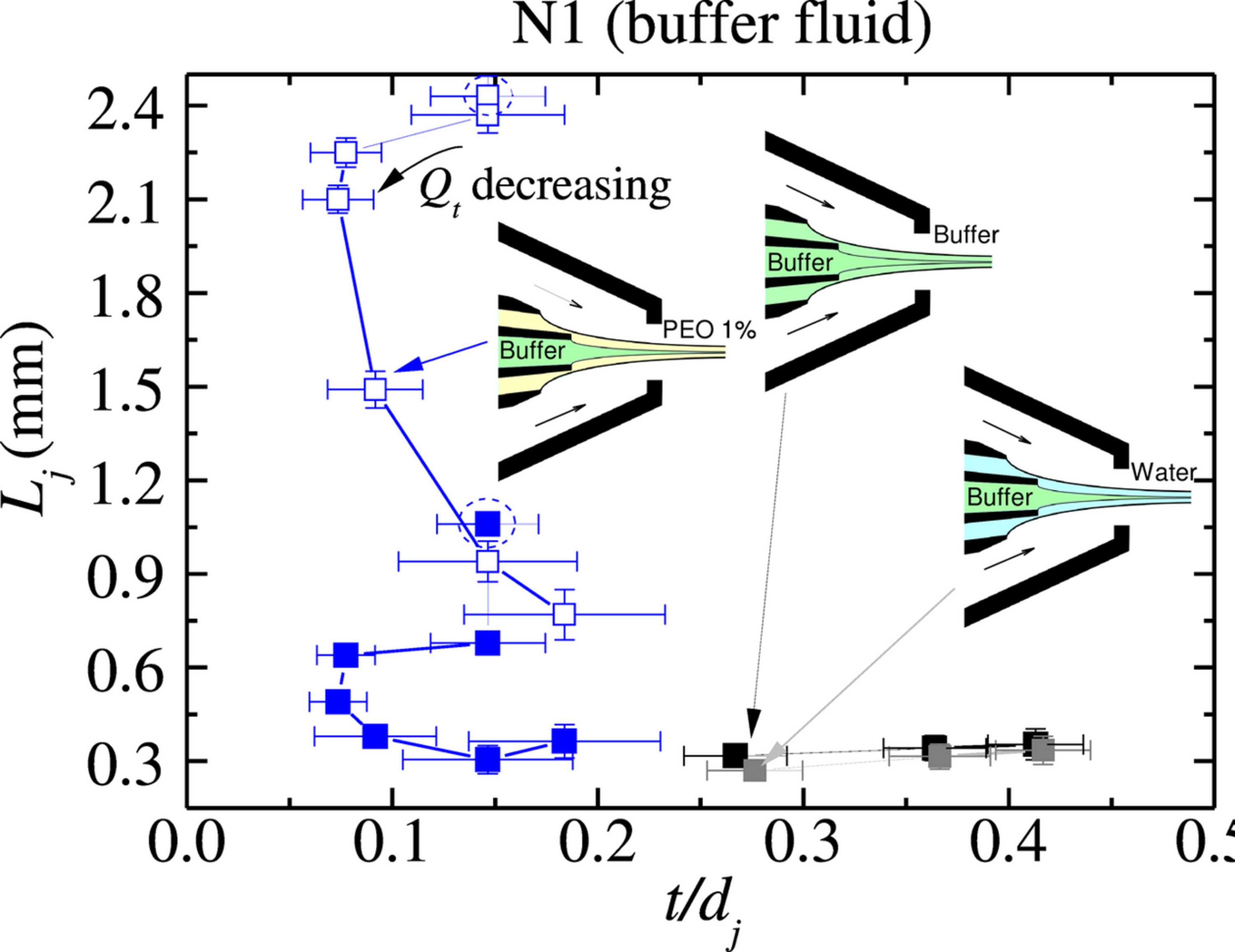

Figure 8
Jet length [L_{\rm j}] versus jet ratio [t/d_{\rm j}] at the stability limit for the buffer fluid jet surrounded by the buffer fluid shell (black symbols), the water shell (gray symbols) and the viscoelastic shell (blue squares). The open symbols correspond to the results without considering the jet whipping. The points marked with a circle were obtained for [Q_{\rm i} = 5] µl min−1 and the outer flow rate [Q_{\rm o} = 5] µl min−1, which is above its minimum value [Q_{\rm o} = 2] µl min−1.
