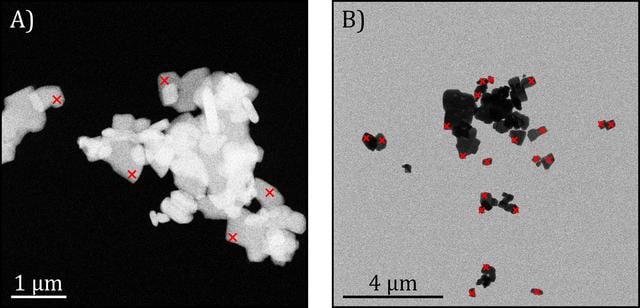

Figure 2
Representative reference images used to select interesting BaSO4 crystallites. The red crosses correspond to the positions where the beam was placed to acquire ED patterns. (a) STEM-HAADF image from the JEOL F200 TEM at 200 kV. (b) STEM-BF image from the TESCAN Tensor microscope at 100 kV.
