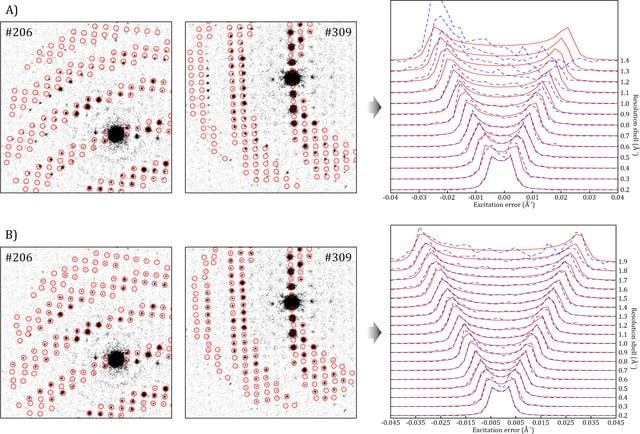

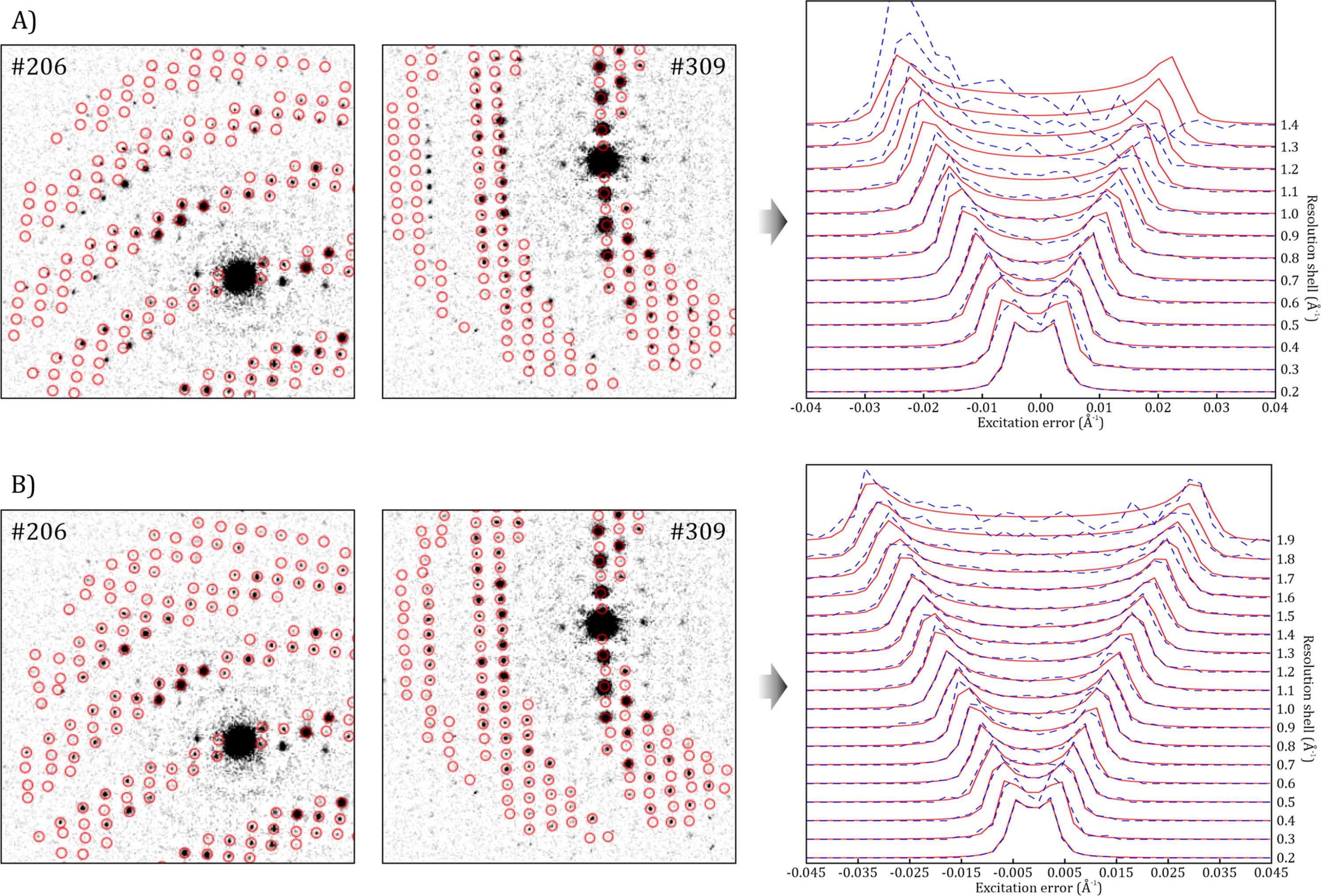

Figure 3
Two example background-corrected diffraction patterns of the SerialPED experiment from the Tensor microscope, with overlaid red circles that correspond to the calculated reflection positions according to the found orientation, and the resulting averaged rocking curves from PETS2 at different resolution shells considering all diffraction patterns. Blue dashed curves represent the averaged experimental result and red dashed curves represent the simulated double-peaked curve that fits best. (a) Case in which reflection positions are treated as completely free of distortions and (b) when distortion corrections are enabled.
