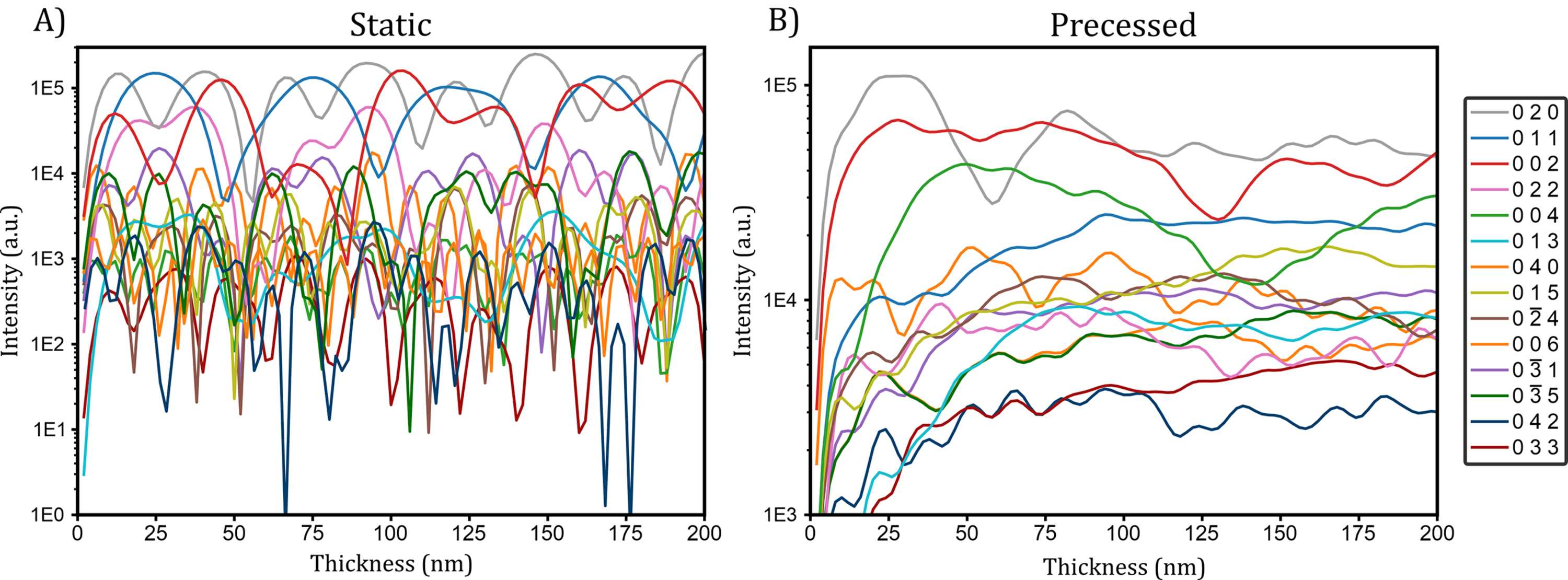

Figure 4
Calculated intensity values for some of the reflections present in the [100] zone-axis orientation of baryte with respect to the thickness. (a) The case of a static beam and (b) a 1° precessed beam. The Bloch wave formalism implemented in dyngo was used. The y axis is represented on a logarithmic scale and reflection intensities were calculated between thicknesses of 2 nm and 200 nm in 2 nm steps. A reflection width of 0.01 Å−1 and reflections up to 2 Å−1 were considered, leading to 96 reflections used for the calculation.
