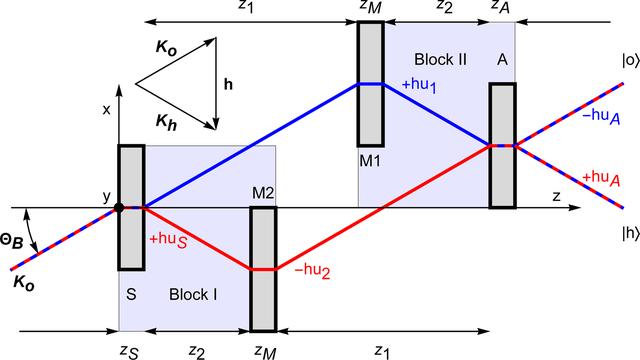

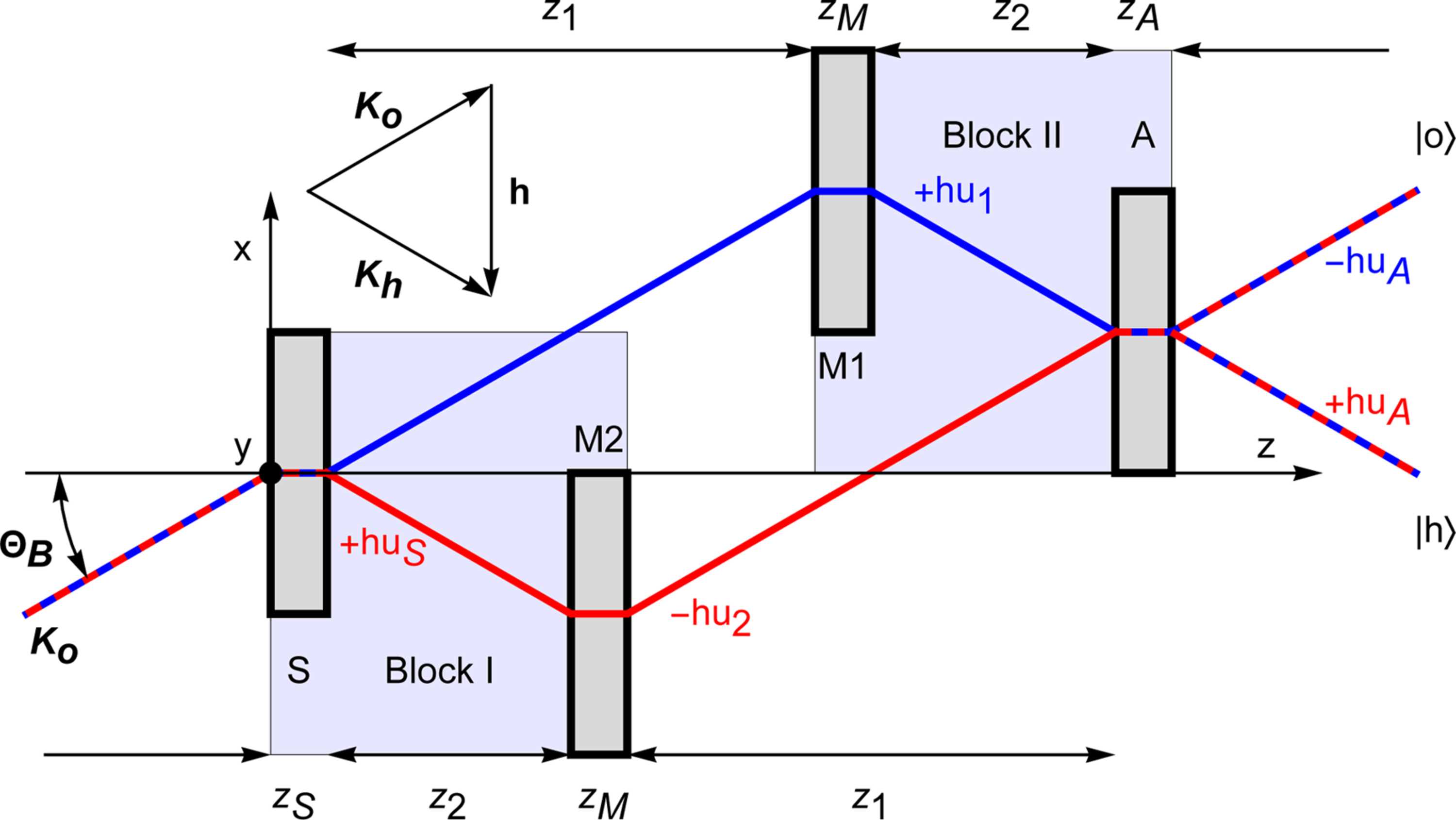

Figure 1
Top view of a skew-symmetric triple-Laue interferometer with separate crystals, blocks I and II. S = splitter, M1 and M2 = mirrors, A = analyser. The blue and red base rays indicate the first and second arms, respectively. The x and y axes are orthogonal to the diffracting and reflection planes, respectively. The z axis is orthogonal to the splitter, mirrors' and analyser surfaces. The [\pm hu_{X}] labels are the phases attained by the reflected state relative to the forward transmitted one.

Journal logoJOURNAL OF
APPLIED
CRYSTALLOGRAPHY
ISSN: 1600-5767
Volume 58| Part 6| December 2025| Pages 2037-2048
https://doi.org/10.1107/S1600576725008660
