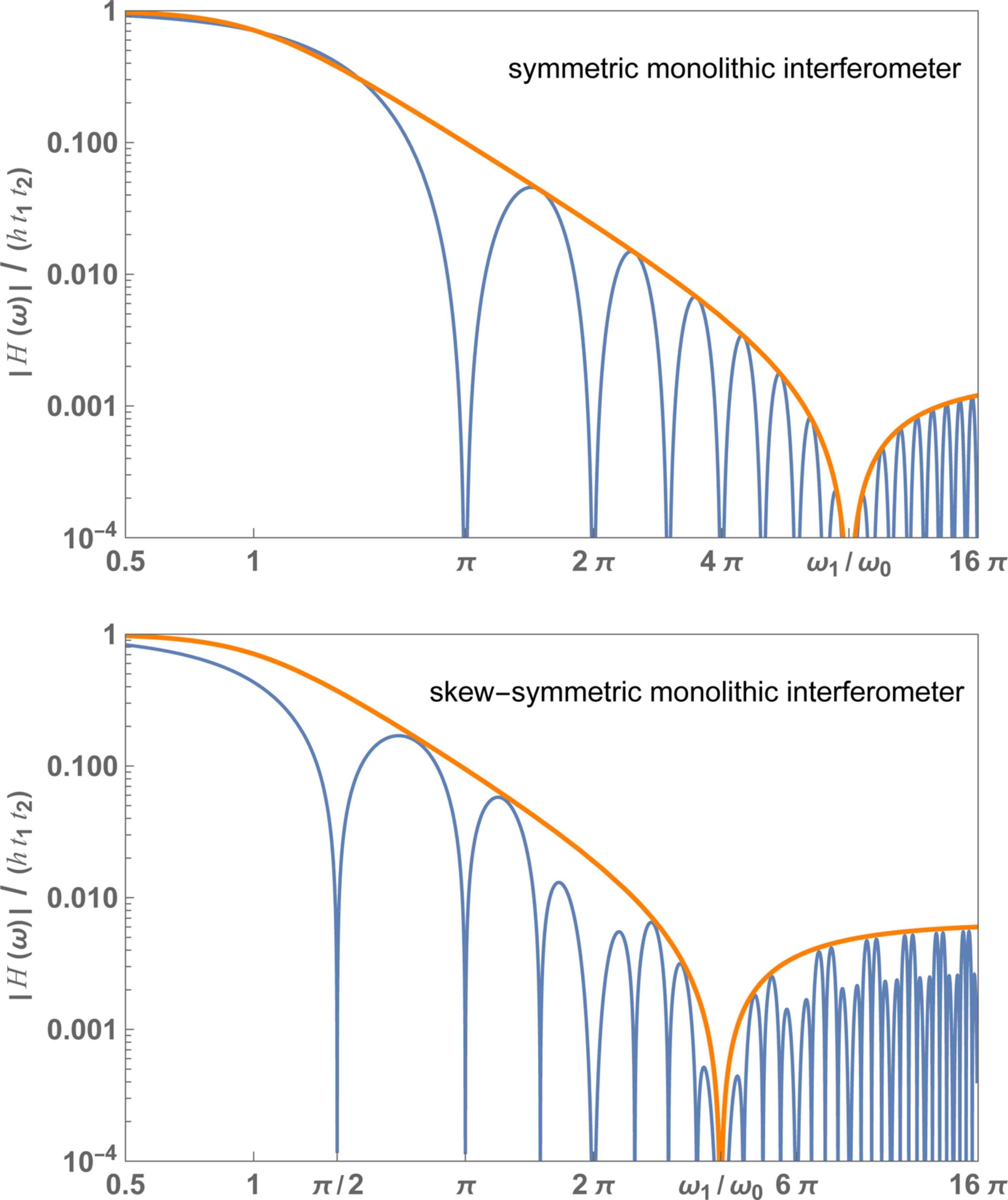

Figure 4
Monolithic interferometer. Blue: normalized magnitude of the frequency response of the interference phase to seismic noise versus the dimensionless (angular) noise frequency [see (11b)]. Orange: envelope [see (13a)]. Top: symmetric geometry, [t_{1} = t_{2}]. Bottom: skew-symmetric geometry, [t_{1} = 4t_{2}]. In both cases [\tau_{\rm S} = \tau_{\rm M} = \tau_{\rm A} = 0.04t_{1}]. The crystal spacing and thickness were chosen to highlight the high-frequency behaviour of [|H(\omega)|]. They are not representative of the interferometer design.

Journal logoJOURNAL OF
APPLIED
CRYSTALLOGRAPHY
ISSN: 1600-5767
Volume 58| Part 6| December 2025| Pages 2037-2048
https://doi.org/10.1107/S1600576725008660
