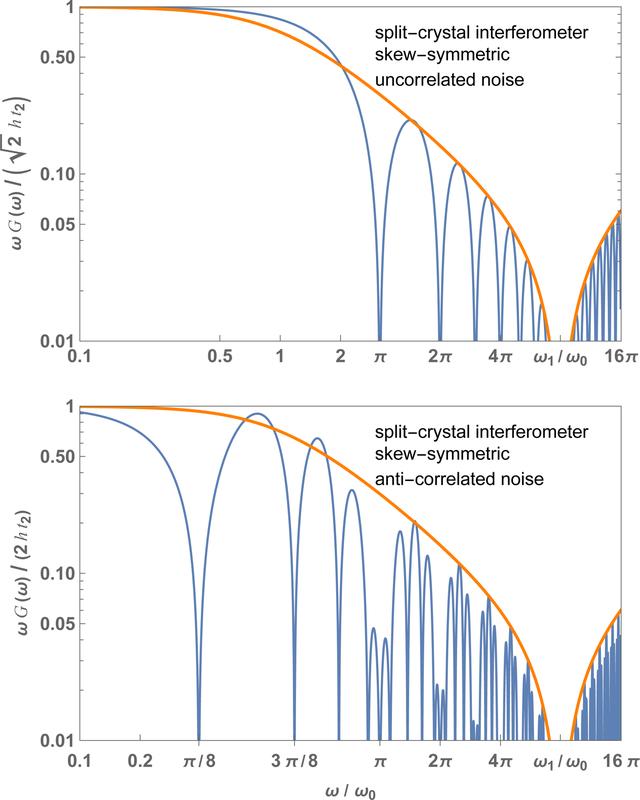

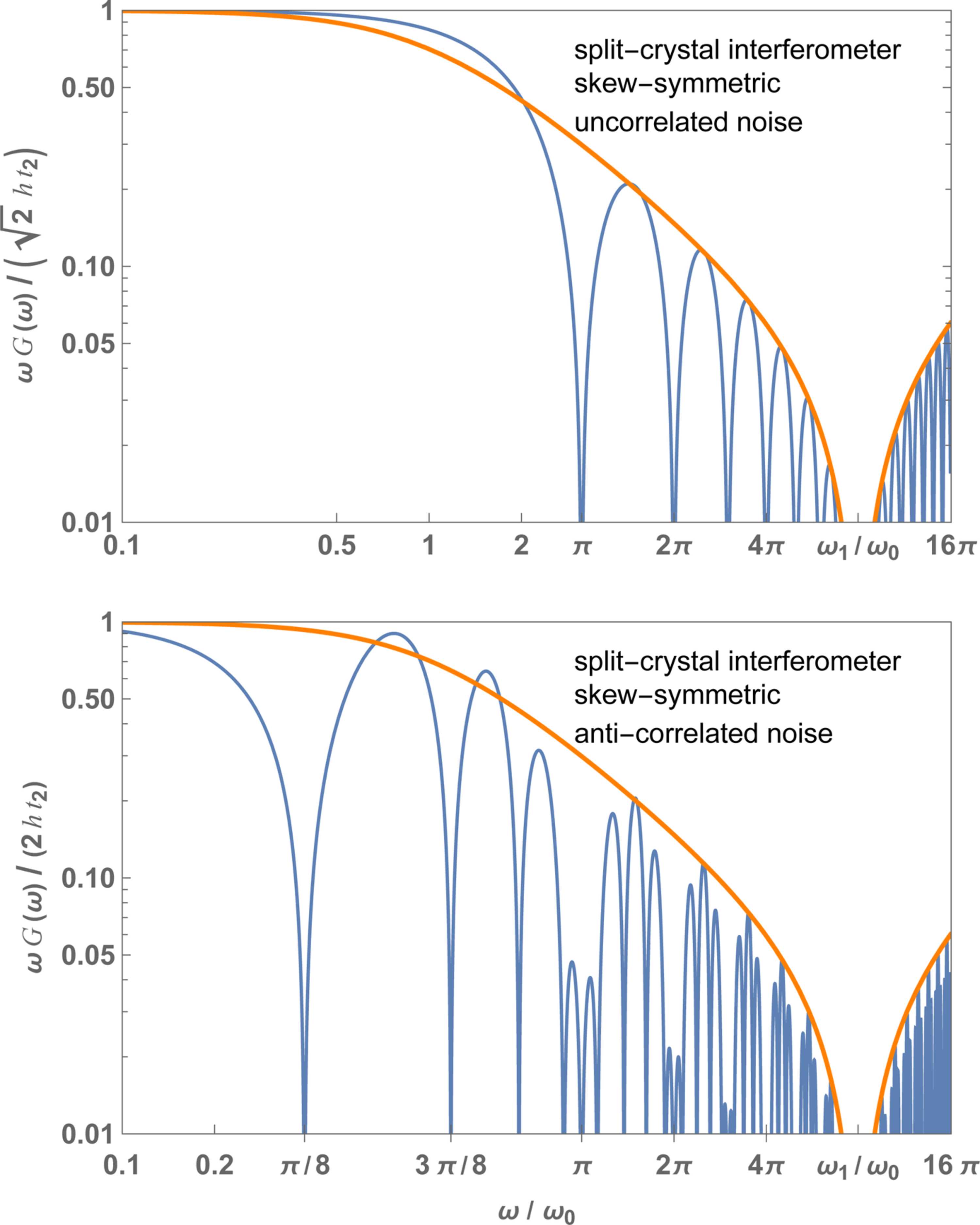

Figure 6
Skew-symmetric split-crystal interferometer. Blue line: normalized magnitude of the frequency response of the interference phase to uncorrelated (top) and anti-correlated (bottom) seismic noises versus the dimensionless (angular) noise frequency [see (20), (25a) and (24a)]. Orange lines: envelopes [see (26a)]. In both cases [\tau_{\rm S} = \tau_{\rm M} = \tau_{\rm A} = 0.04t_{2}], [t_{1} = 4t_{2}] and [\omega_{0} = 2/t_{2}]. The crystal spacing and thickness were chosen to highlight the high-frequency behaviour of [G(\omega)]. They are not representative of the interferometer design.
