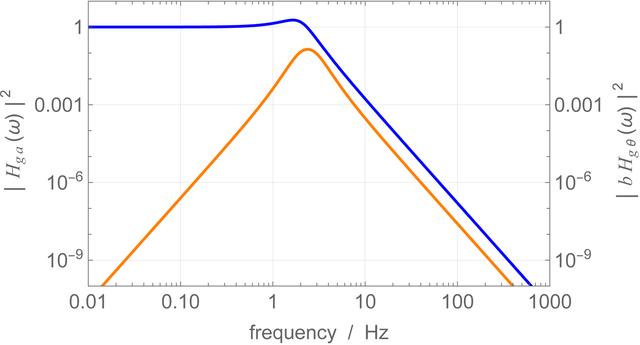

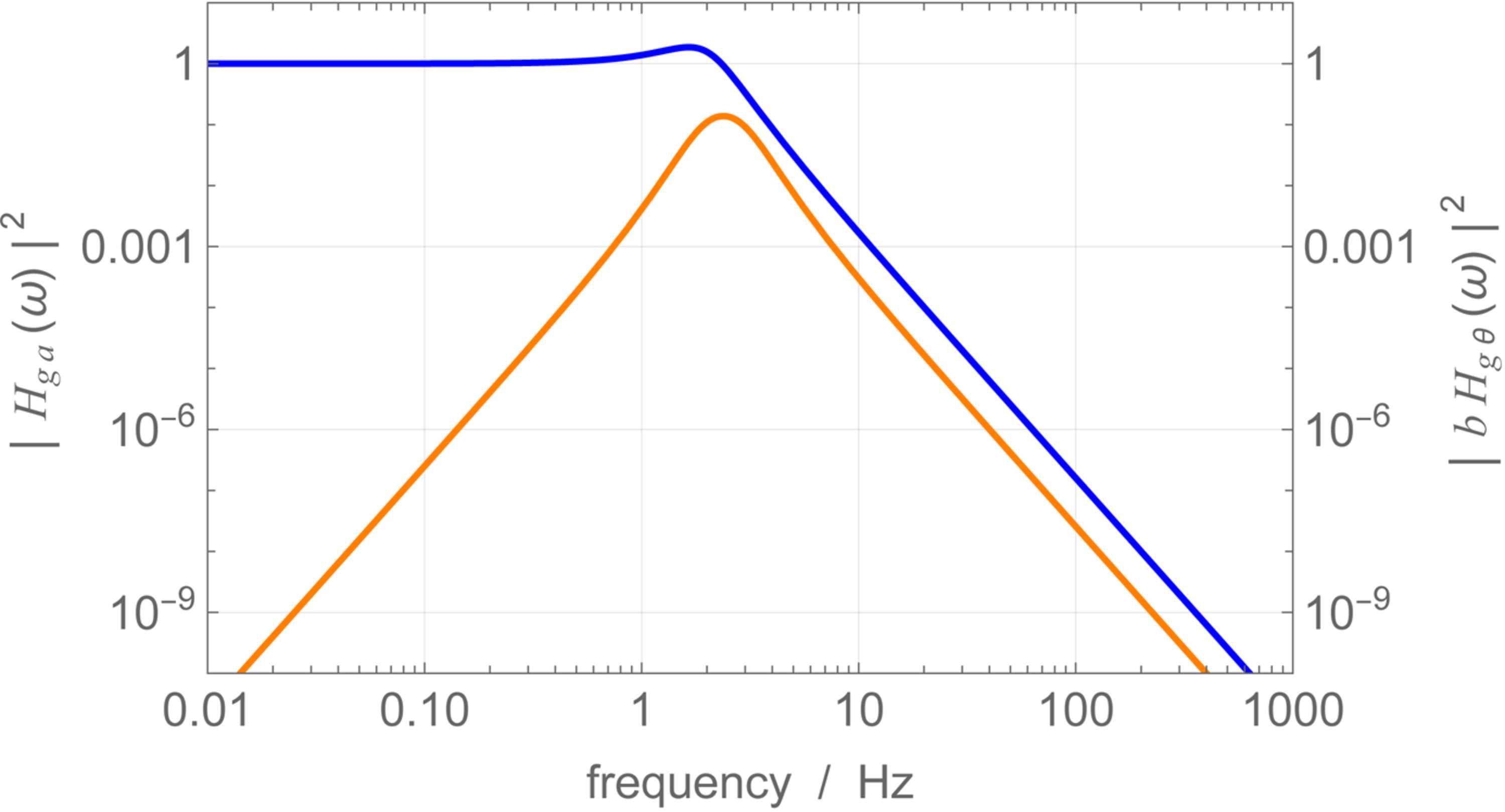

Figure 8
Mass–spring isolation system having [\omega_{m} = 2\times 2\pi] Hz linear resonance frequency and [\zeta_{m} = 0.4] damping ratio. Blue: squared transmissivity of the ground acceleration. Orange: squared transmissivity of the ground acceleration to the mass angular acceleration. The angular resonance frequency is [\omega_{\alpha} = \sqrt{2}\omega_{m}]. The radius of gyration is [\sqrt{2}\,b/4], where b is the spring separation.
