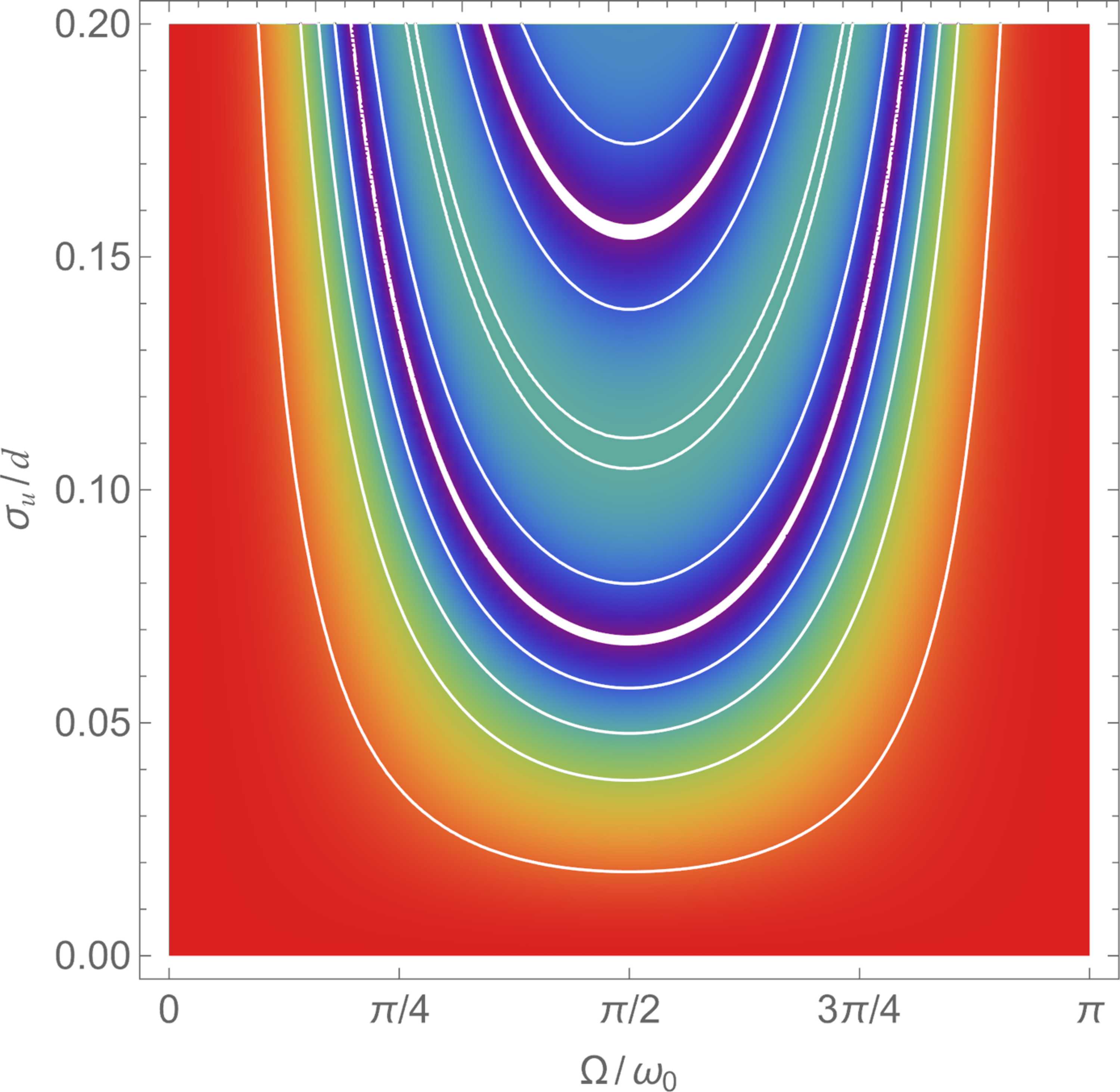

Figure 9
Monolithic and symmetric interferometer. Visibility Γ — see (35) — of the interference fringes versus the standard deviation [\sigma_{x}/d] of a sinusoidal displacement having frequency [\Omega/\omega_{0}]. Colours run from one (red) to zero (violet). The contour lines indicate the values [\Gamma = 0.9,0.6,0.4,0.2] and 0.
