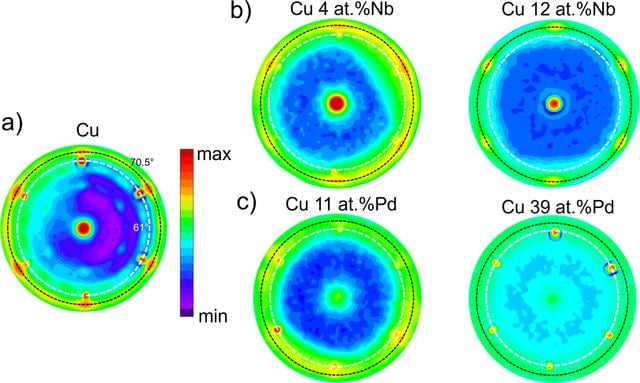

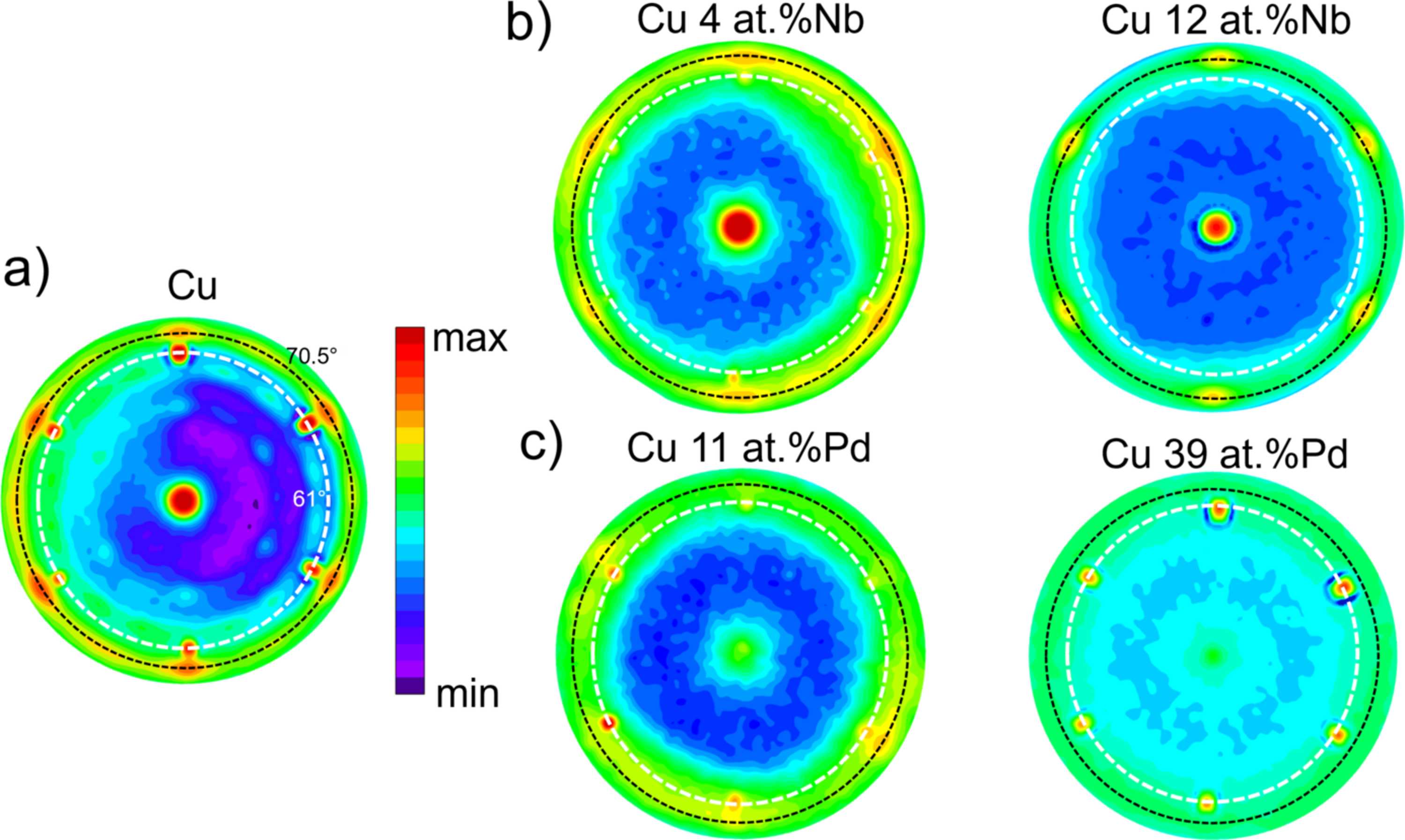

Figure 1
Pole figures around Cu{111} for (a) pure Cu, (b) Cu with different Nb contents and (c) Cu with different Pd concentrations. The white dashed line indicates the peaks at 62[{}^{\circ}] tilt corresponding to the peaks of the 2113 sapphire substrate reflections. The black dashed line corresponds to the tilt angle of the {111} planes in the f.c.c. structure of the films. The color palette is the same for all the pole figures and the minimum and maximum intensity values are set individually for each sample. This choice preserves low-intensity features that would otherwise be lost if a single global scale was imposed.
