![[Figure 2]](gue5012fig2mag.jpg)
|
|
Figure 2

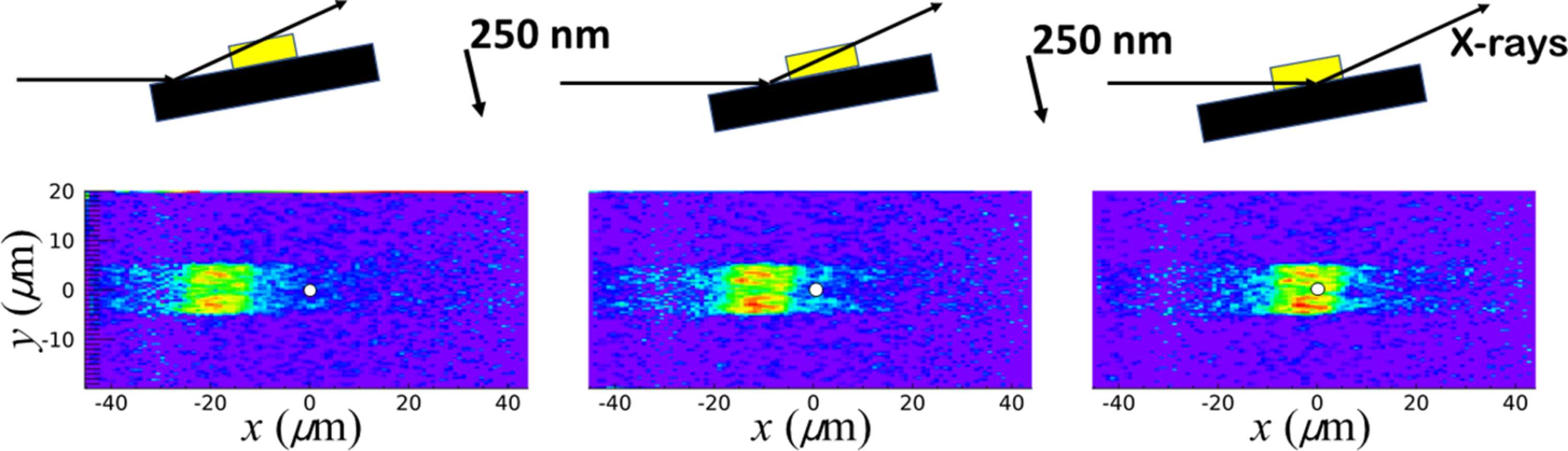

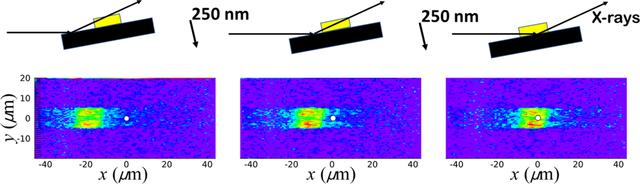

(Top) Schematic of the geometry and positioning of the sample, consisting of a Si wafer (black) and the Au island (yellow), in the beam. Shown are three different z positions of the sample, 250 nm apart, as indicated by the arrows. (Bottom) Corresponding intensity maps of the reflected signal at θ = 1.8° mapped in the surface xy plane. The white dots indicate the nominal position of the X-ray beam with the size corresponding to the nominal footprint along x of approximately 3 µm (that along y is exaggerated for clarity). |
![[Figure 2]](gue5012fig2.jpg)
