Figure 1

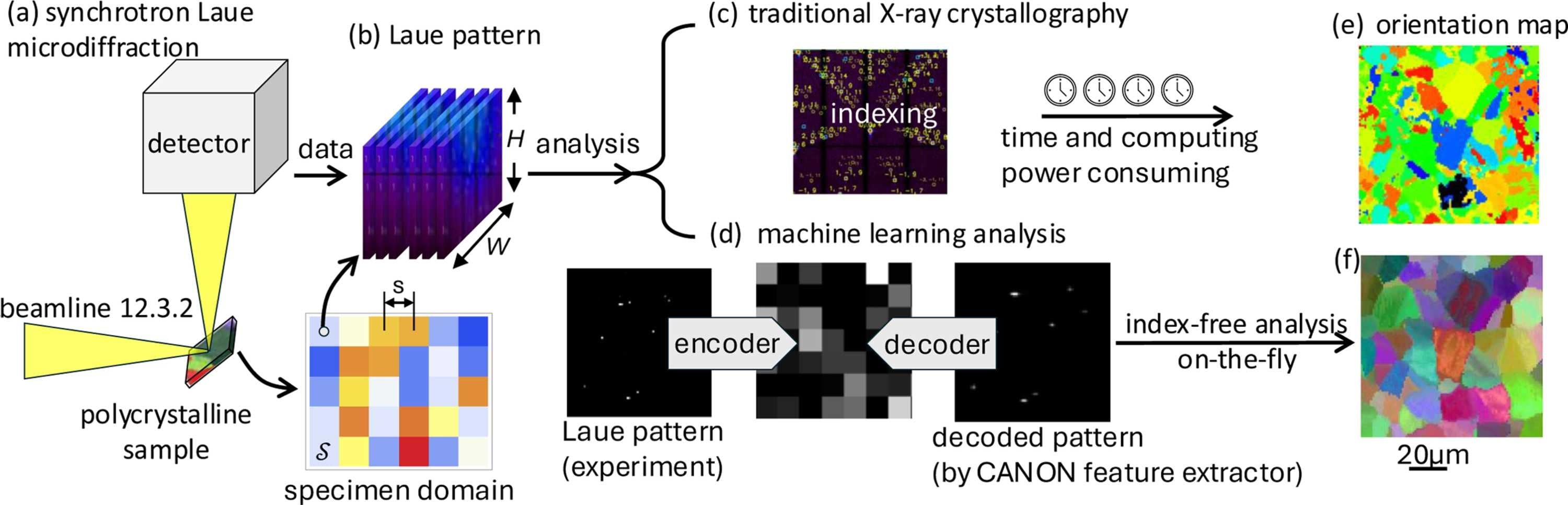

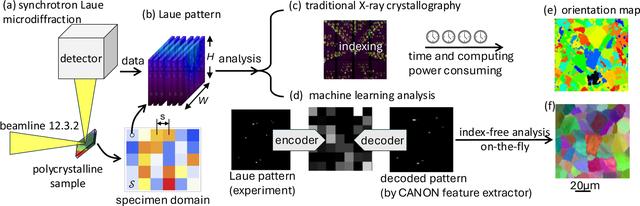

Schematics of the synchrotron X-ray Laue microdiffraction experiment. (a) Experiment in beamline, which generates a sequence of (b) Laue patterns corresponding to the 2D specimen domain, [{\cal S}], with a scanning step distance, s. (c)–(e) Illustrate the traditional data analysis procedure by X-ray crystallography, while (d)–(f) elaborates on the ML approach to analyze the Laue microdiffraction data through feature extraction and unsupervised learning.
