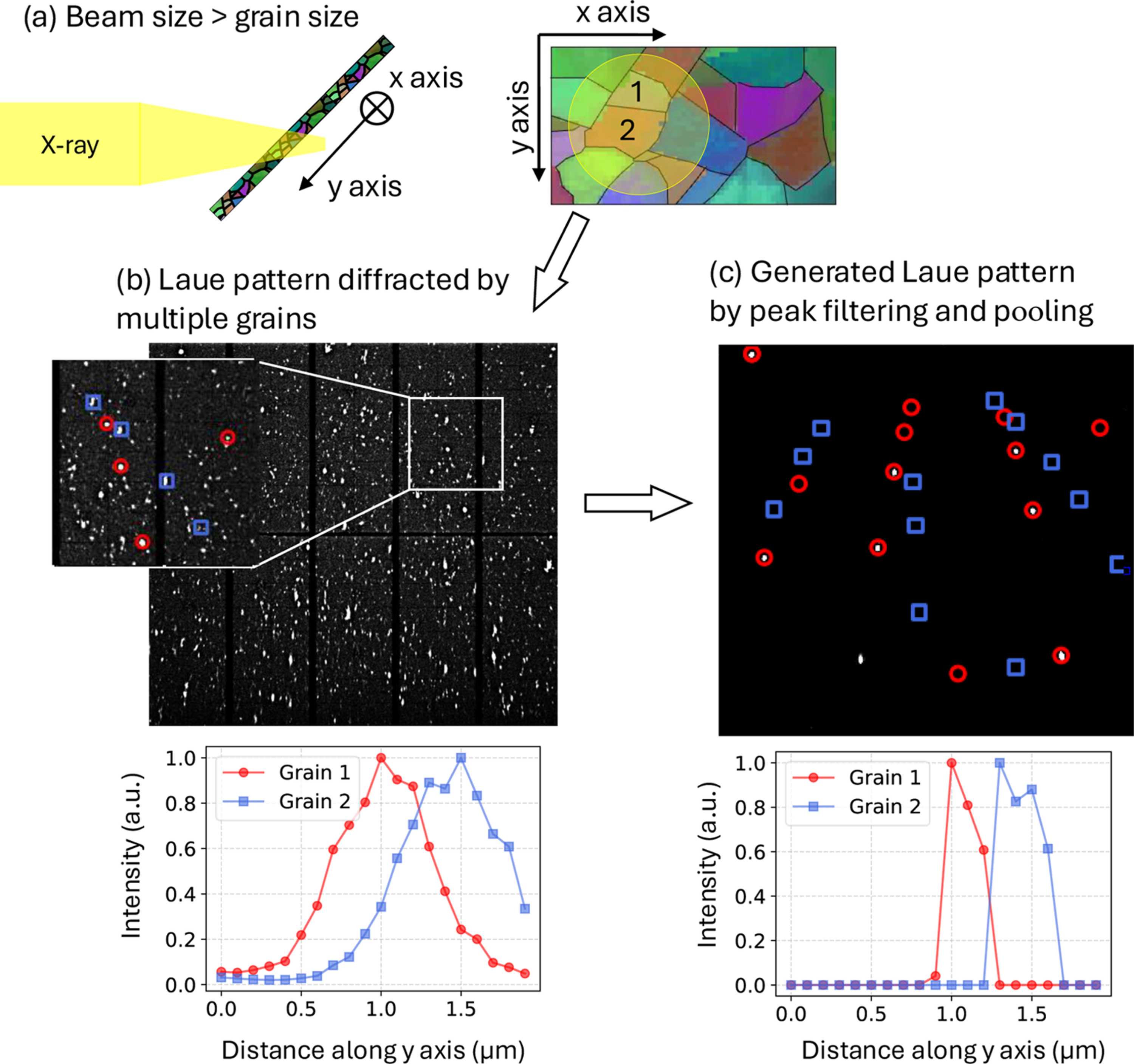

Figure 2
Comparison between the Laue pattern collected from experiment and the Laue pattern generated by a peak-pooling algorithm. (a) Illustration of the incident X-rays with a beam size greater than the grain size. (b) Original Laue pattern produced by diffraction by multiple grains with different orientations. The intensity profiles of grain 1 and grain 2 are spatially unresolvable. (c) Artificial Laue pattern generated by equation (2[link]), mainly showing the reflections from grain 1. The intensity profiles of grain 1 and grain 2 are better spatially resolvable.
