Figure 4

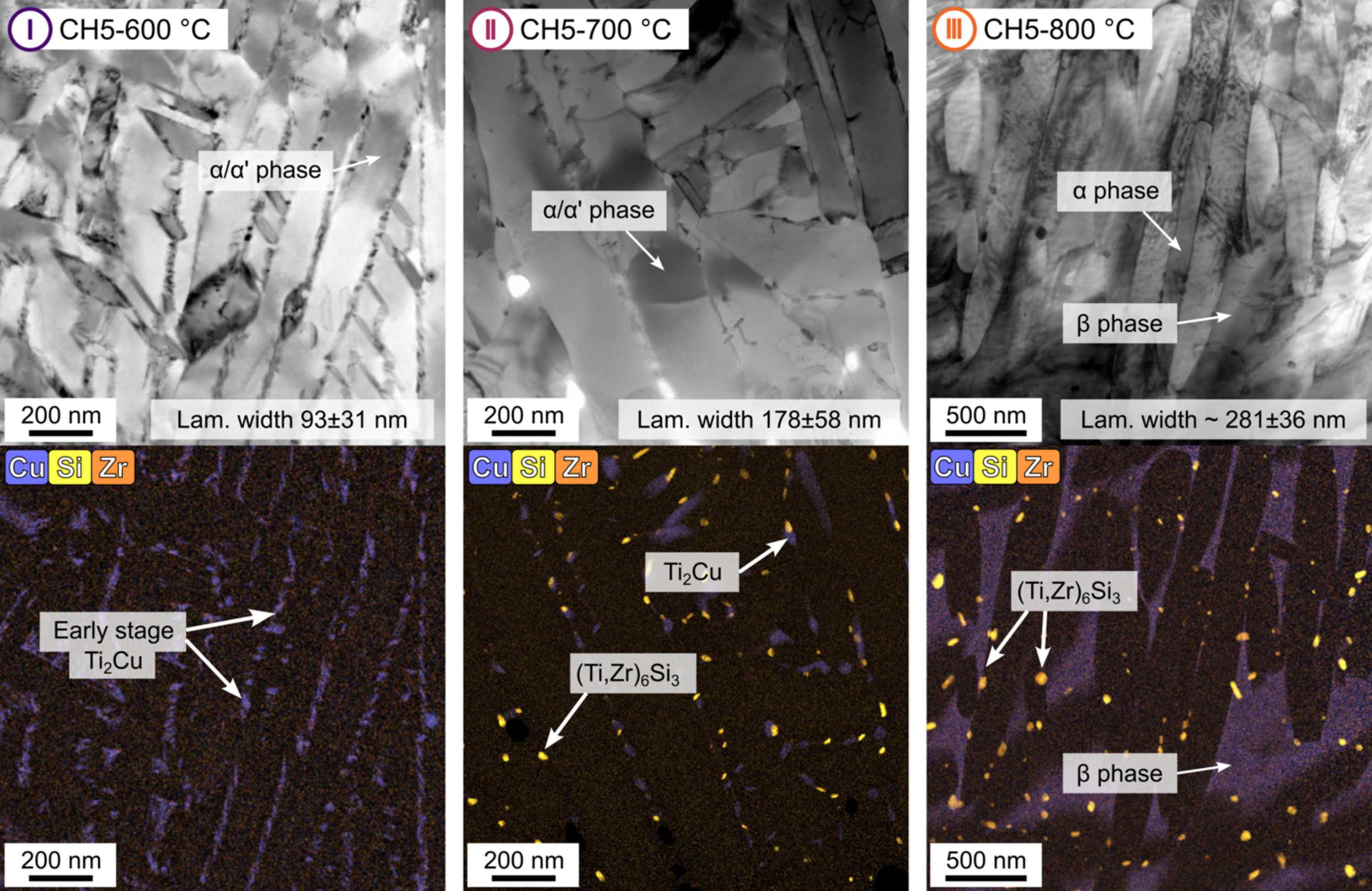

BF-STEM images (top row) and corresponding EDS elemental maps (bottom row) of Cu, Si and Zr for samples quenched from selected temperatures during the CH5 experiment: (I) 600 °C, (II) 700 °C and (III) 800 °C. The micrographs reveal the evolution of the lamellar α′/α matrix and the formation of Cu- and Si-rich precipitates.
