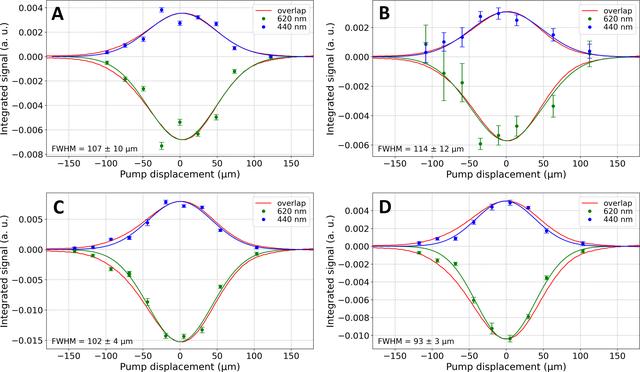

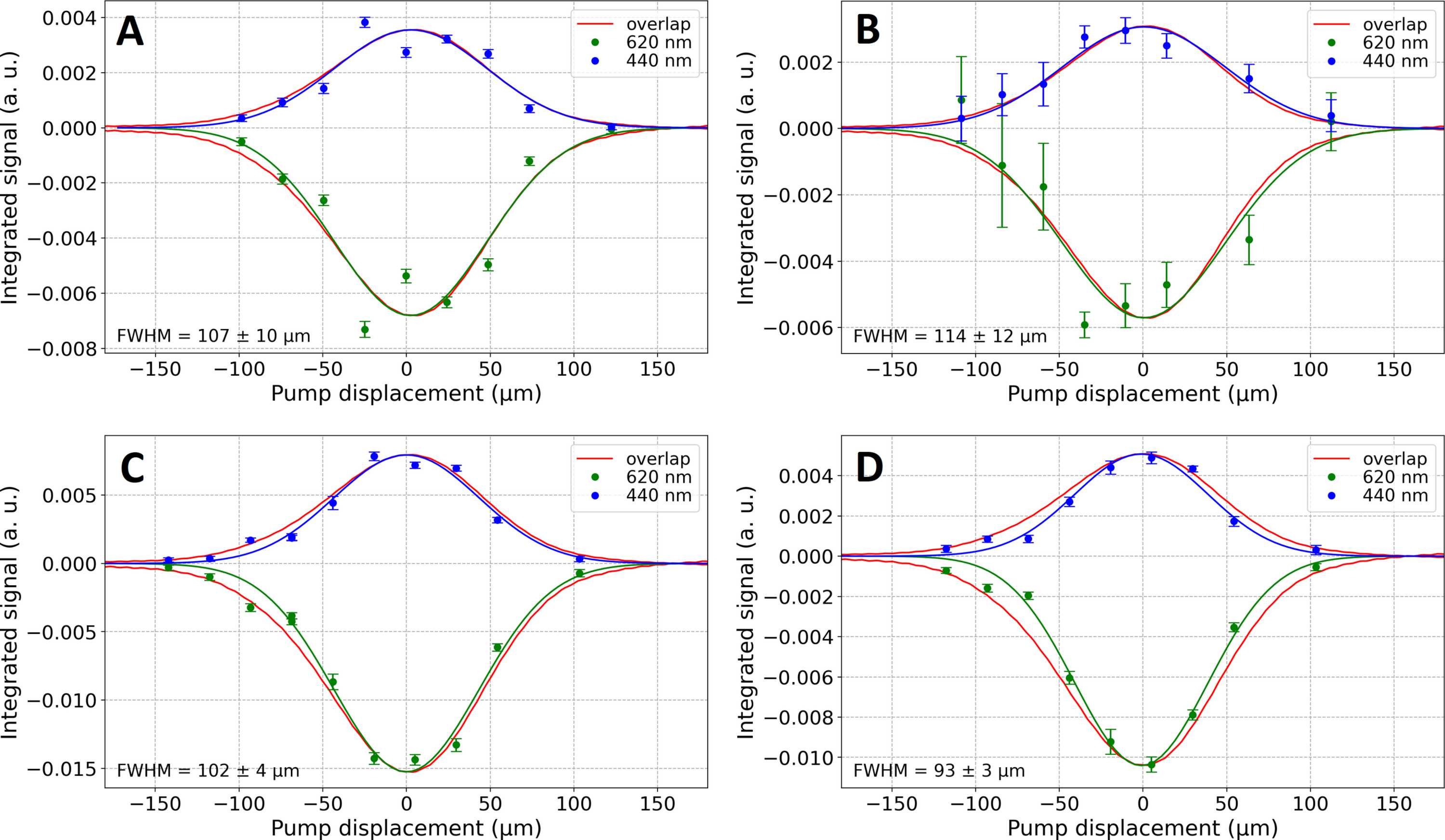

Figure 4
Transient absorption profile in a flat 100 µm cell. (A) LCP + Nile red, (B) LCP + Nile red crystals, (C) LCP + Nile red + thaumatin crystals, (D) LCP + Nile red (repeated sample preparation for comparison with figure A). The peak pump energy density was ∼0.7 mJ cm−2. The ESA band was averaged (with mean filtering) in the 435–445 nm range and the GSB band in the 615–625 nm range. ΔA was averaged (with mean filtering) in the 10 to 50 ps Δt range, while the background signal was averaged in the −10 to −1 ps Δt range. Continuous green and blue curves are Gaussian fits. The pump spot size along the jet was 102 µm and the probe spot was 20 µm (FWHM). The pump–probe overlap integral (red curve) was normalized to the green and blue curves for easier comparison. |
