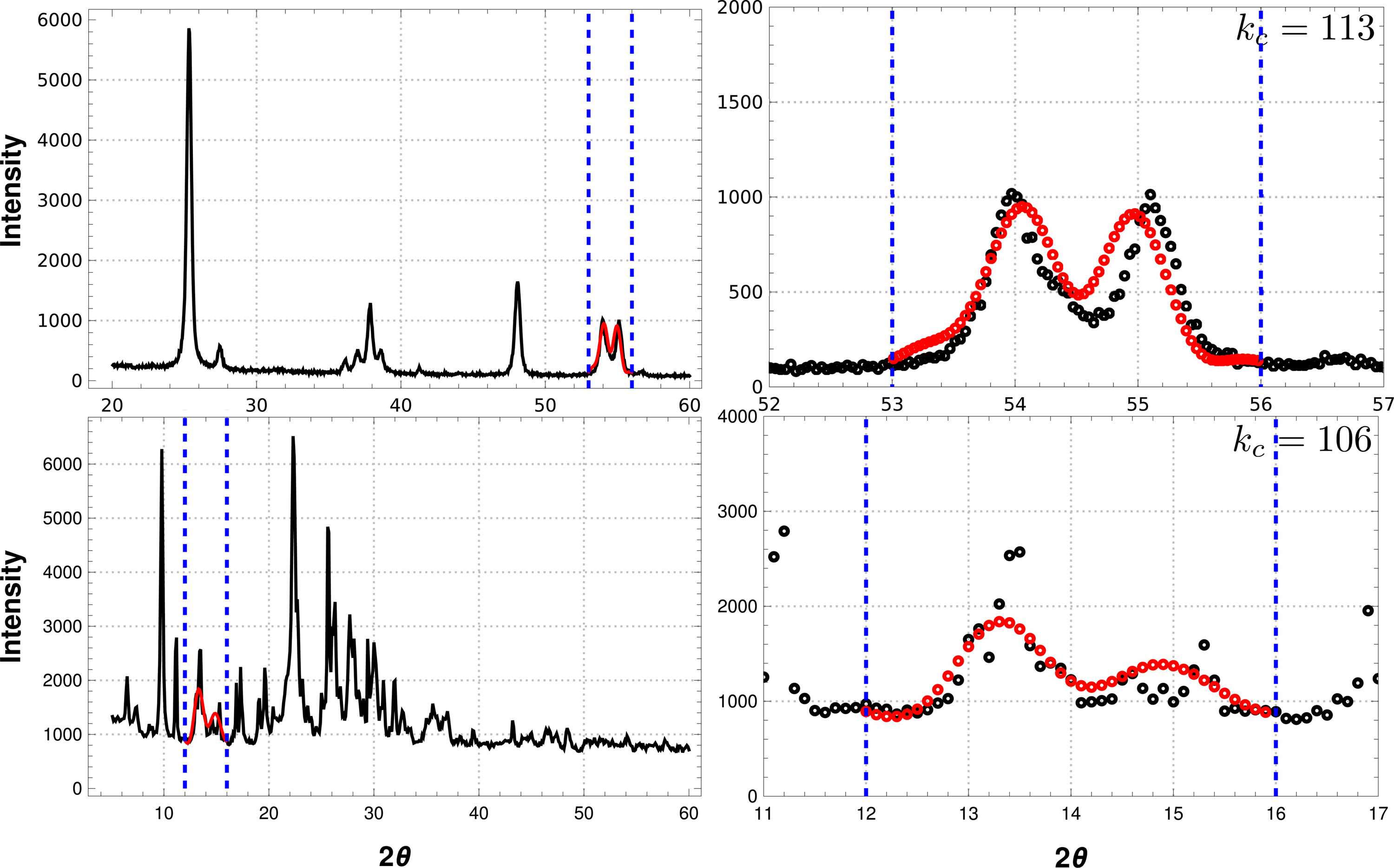

Experimental results. Two experimental data sets were used to evaluate the performance of the reconstruction procedure. The artificial gap is shown as vertical dashed lines. The upper panels are from a TiO2 (anatase) sample. The iterative algorithm can reconstruct the two peaks left out by the gap. The reconstructed signal is shown in red. The right-hand plot shows a zoom of the reconstructed region, where it is clear that the missing peaks have been recovered. The lower panels are from a pathological noisy sample with a mixture of phases clinoptilolite + mordenite + quartz. The gap was taken to shadow three smaller peaks in the data. In spite of the bad quality of the data collection, the algorithm is able to reconstruct the larger peak and another peak convoluting the other two smaller reflections. There is no hint whatsoever about the missing peaks in the data outside the gap, yet the algorithm is able to recover them in both cases. |
