Figure 3

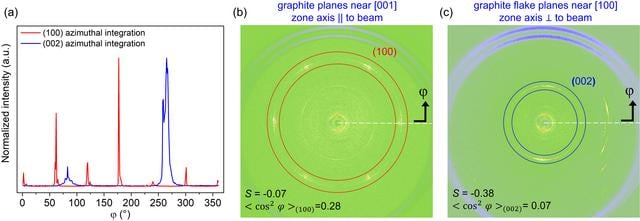

(a) Normalized intensity from the X-ray scattering signal as a function of the azimuthal angle φ, obtained by azimuthal integration of the scattered intensity I(φ). The data correspond to scattering patterns of a graphite flake oriented (b) near the [001] zone axis, with its basal planes perpendicular to the incident X-ray beam, and (c) near the [100] zone axis, with its basal planes parallel to the beam. At the bottom, the corresponding values of S and 〈cos2φ〉(hkl) are listed for the cases where a crystallographic plane is oriented with respect to the incident beam.
