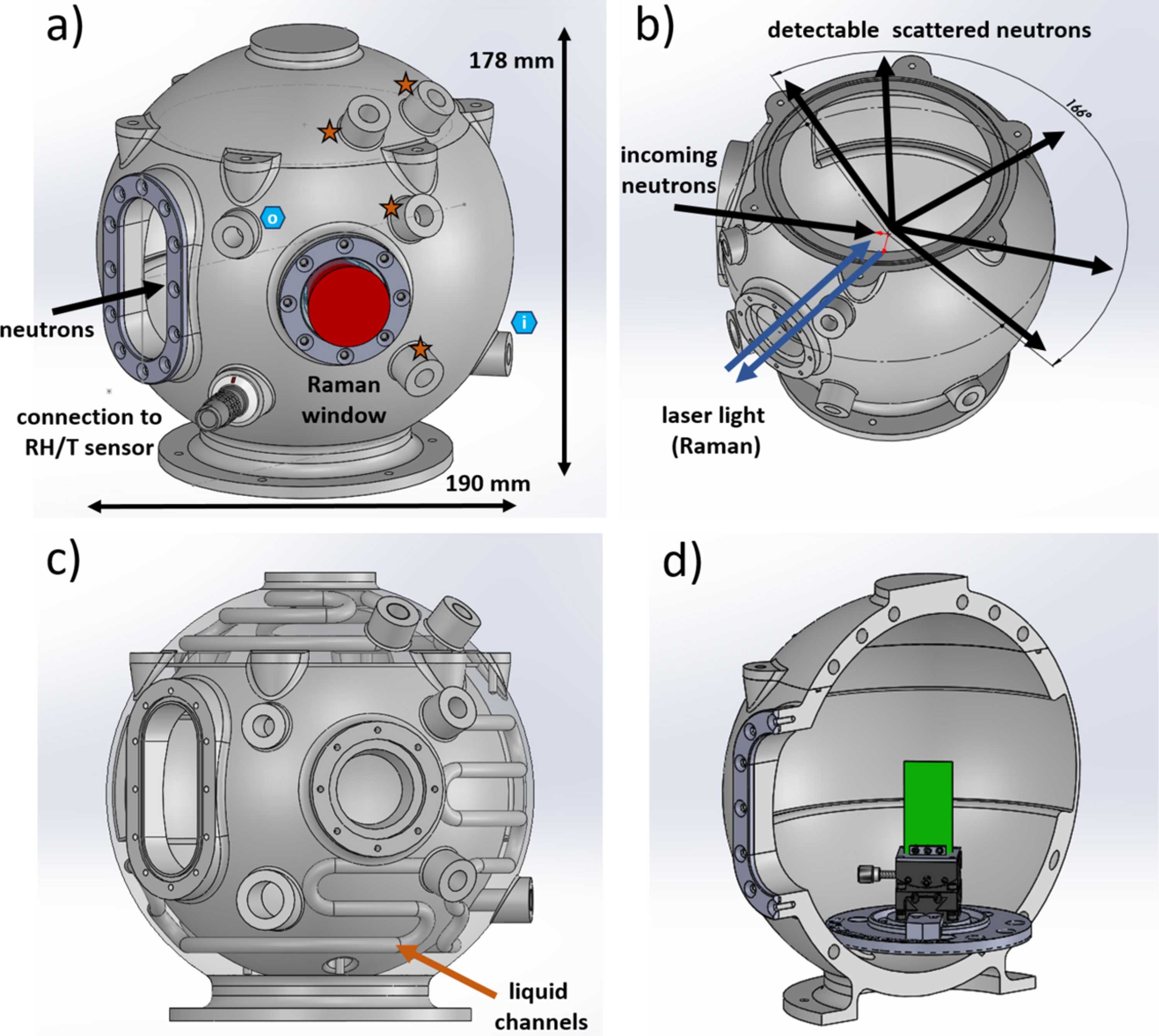

Figure 2
(a) Side view showing the neutron and Raman entry window. The Raman window also serves as an exit window for the reflected Raman light. The red cone indicates the expanded laser light. Orange stars and blue hexagons mark connections for the thermal bath and gas-flow system (`i' for in and `o' for out mark the flow direction). A LEMO plug can be used to bring any electronics, e.g. RH/T sensors or additional measurement equipment, inside the chamber. (b) The scattered neutrons exit through the chamber wall. Over an angular area of 166° and 4 cm in height, the chamber wall has a thickness of only 2 mm. (c) The thicker chamber walls host liquid channels, which can be used to cool and heat the inside of the chamber by connecting it to a thermal bath. (d) Chamber with sample holder and sample (indicated in green).
