Figure 13

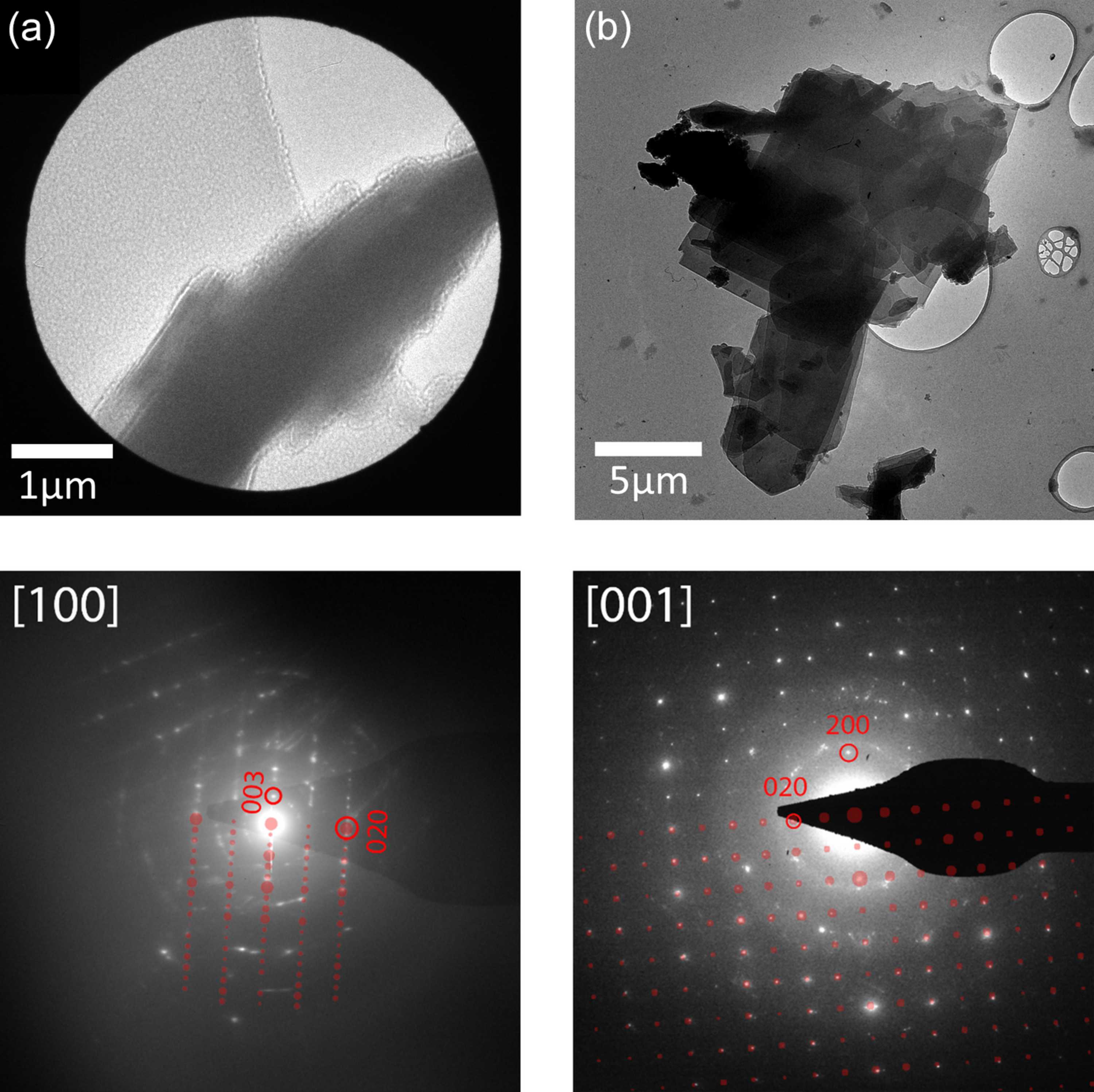

(Top) Bright-field TEM micrographs and (bottom) electron diffraction patterns of the hydrated dypingite plates measured with the electron beam (a) parallel and (b) perpendicular to the plate surface; white spots correspond to the experimental data and red spots are calculated from the refined crystal structure of dehydrated dypingite for the [100] and [001] zone axes.
