![[Figure 3]](vb5097fig3mag.jpg)
|
|
Figure 3

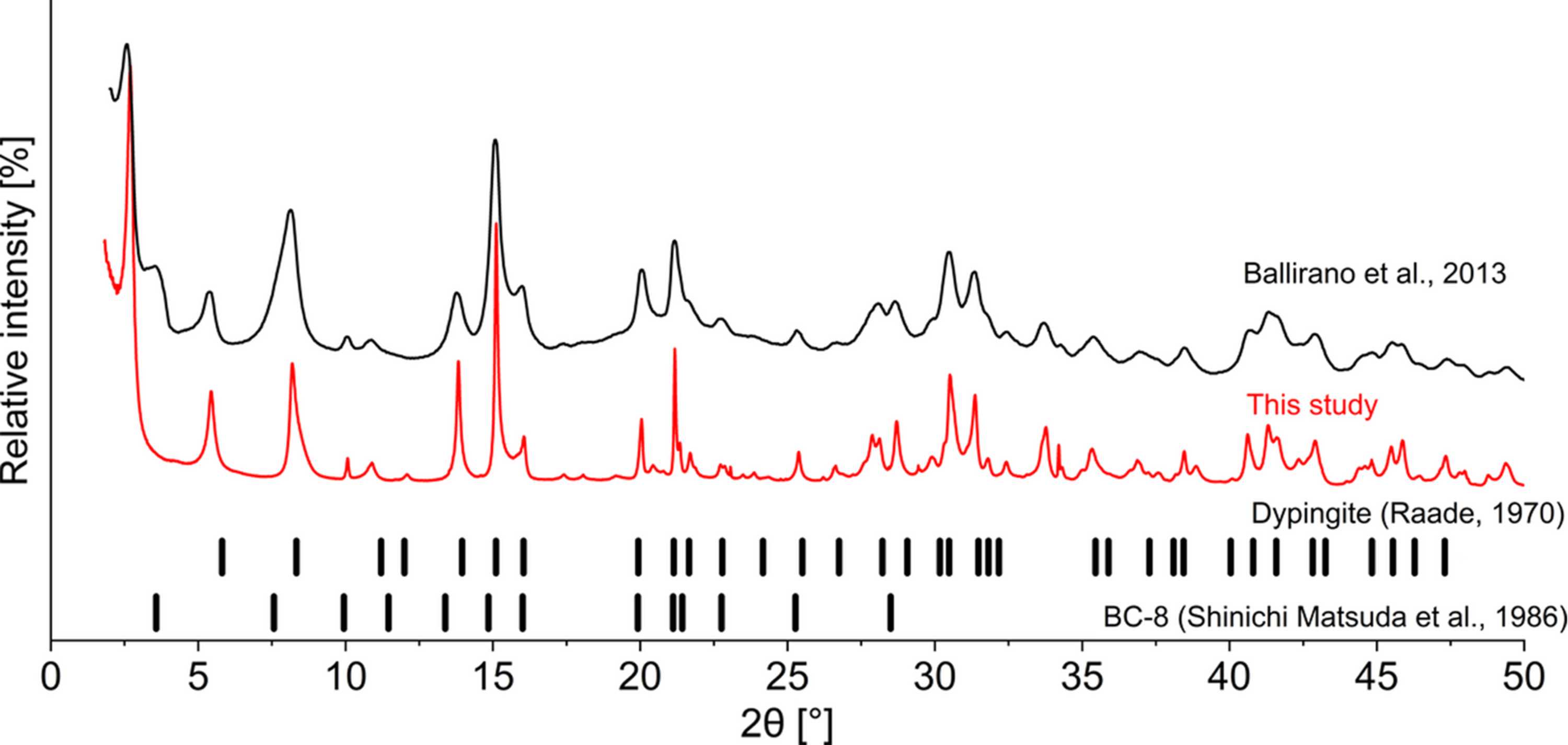

SR-PXD pattern of mineral dypingite collected in the present study (red) compared with Bragg peak positions of the dypingite-type mineral (vertical black lines), the BC-8 phase (Matsuda et al., 1986  ) and PXD patterns collected by Ballirano et al. (2013) (black); λ = Cu Kα1. Adopted with permission from Raade (1970), Ballirano et al. (2013) and Matsuda et al. (1986). |
![[Figure 3]](vb5097fig3.jpg)
