Figure 9

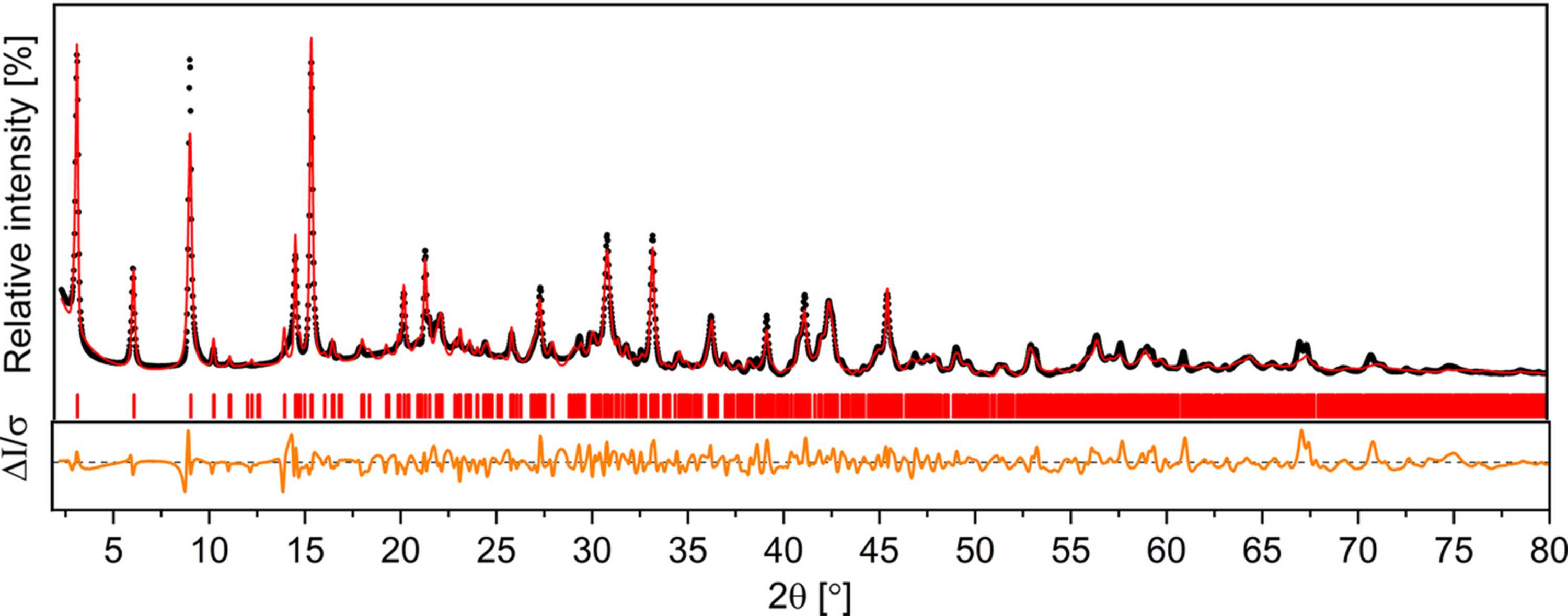

Graphical representation of the Rietveld refinement results obtained for the synthetic dehydrated dypingite. Black dots, red lines and vertical red bars represent the experimental and calculated powder diffraction profiles and the calculated positions of the Bragg peaks, correspondingly. The orange line illustrates the difference between experimental and calculated SR-PXD data; λ = Cu Kα1.
