Figure 13

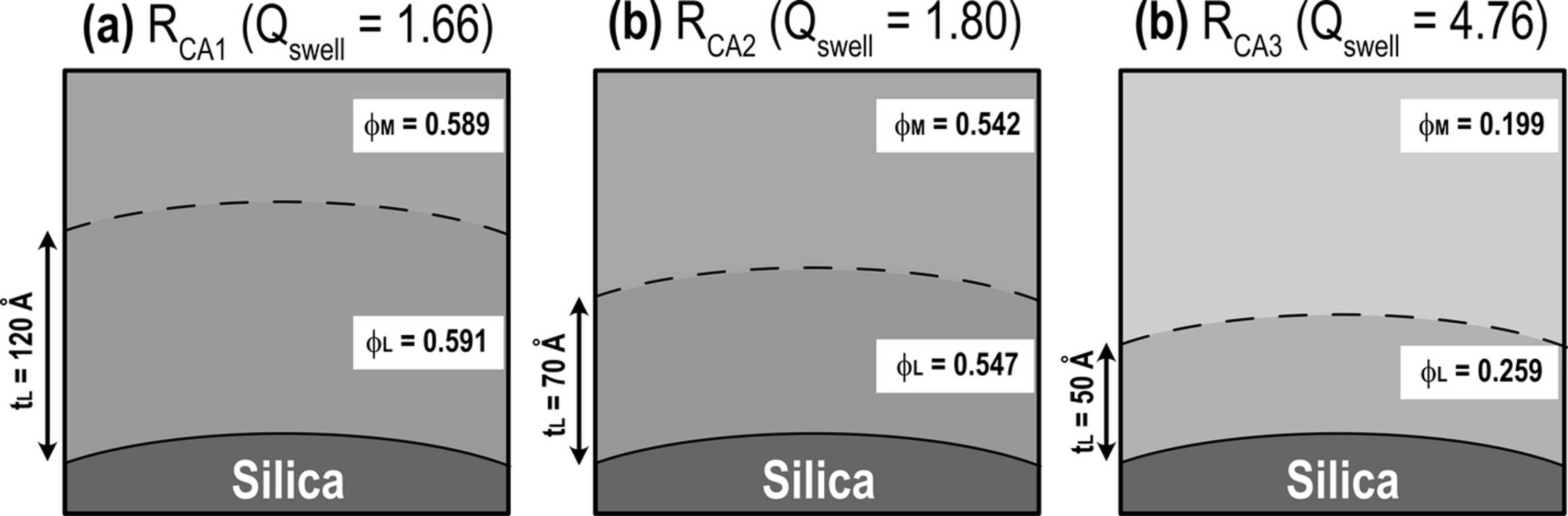

Schematic diagram of the polymer adsorption layer on the silica aggregate surface for RCA1 (a), RCA2 (b) and RCA3 (c). In each panel, the black dashed-line curve indicates the boundary between the polymer-dense layer and the surrounding matrix. The polymer chains are omitted for simplicity. Outside the silica, the background color indicates the polymer volume fraction.
