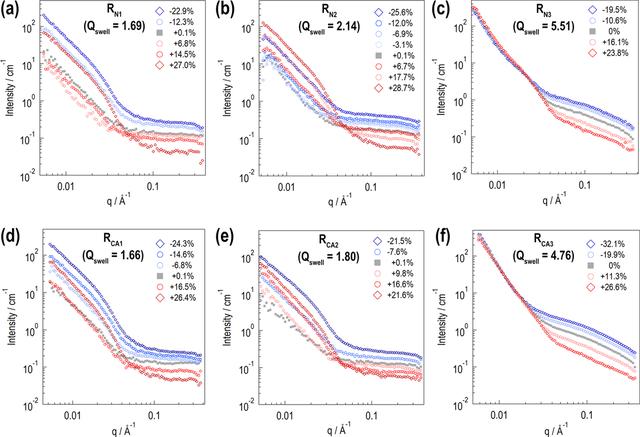

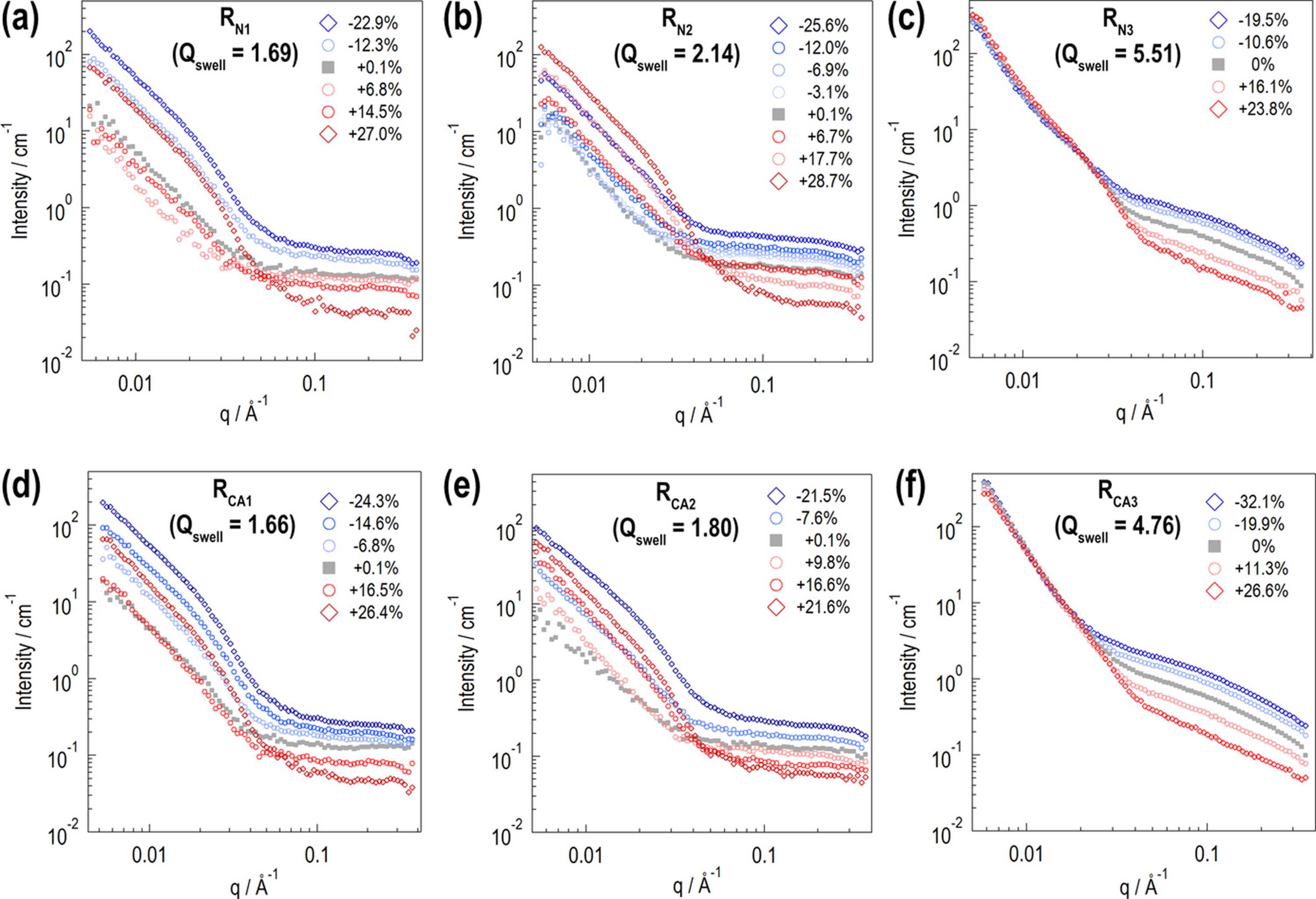

Figure 4
SANS profiles observed at various PH. The horizontal axis shows the magnitude of the scattering vector q [= (4π/λ) sin θ, where λ is the neutron wavelength and 2θ is the scattering angle]. The top and bottom rows present the results for the rubber samples without and with the silane coupling agent, respectively. In each profile, the incoherent scattering intensity contribution is subtracted.
