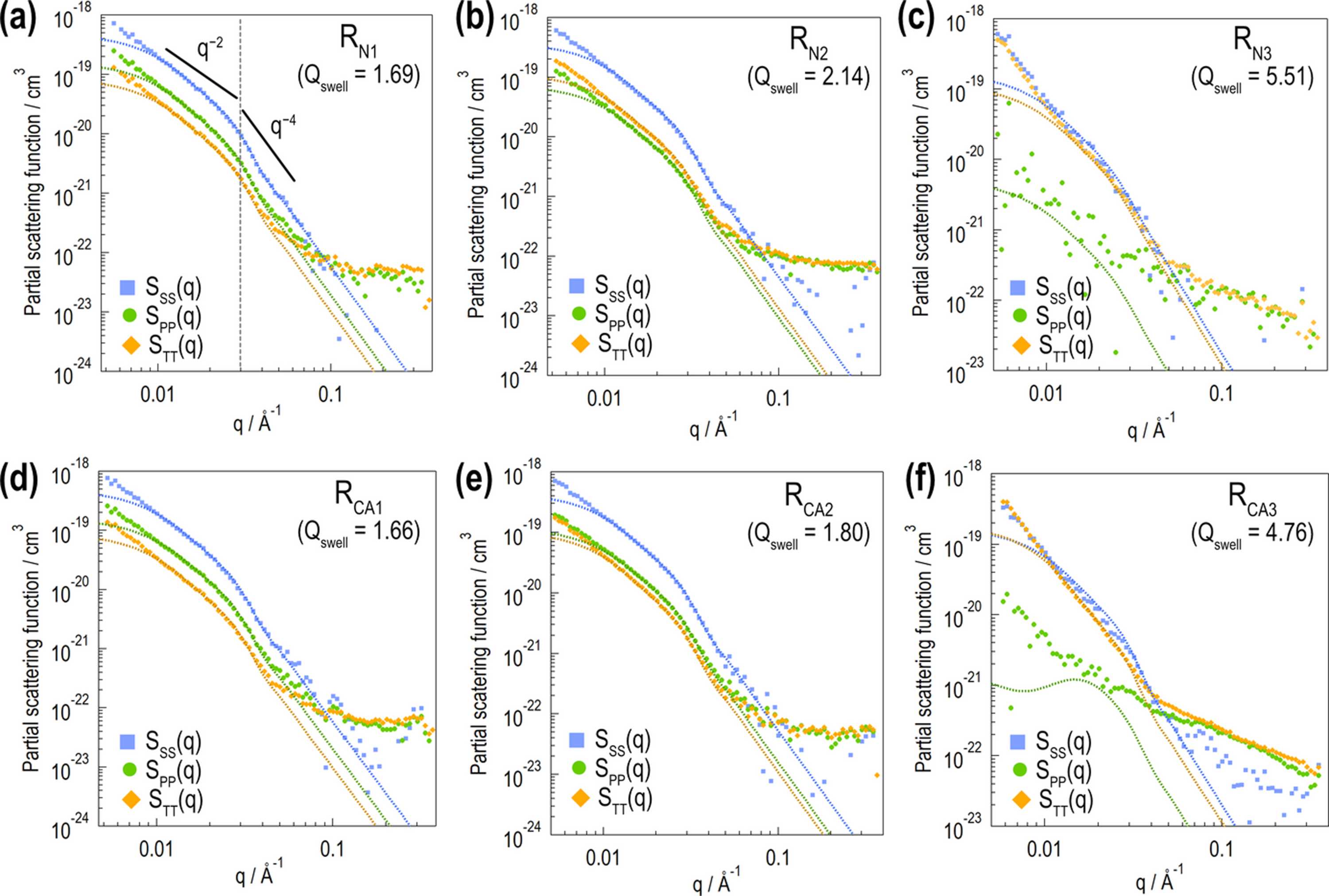

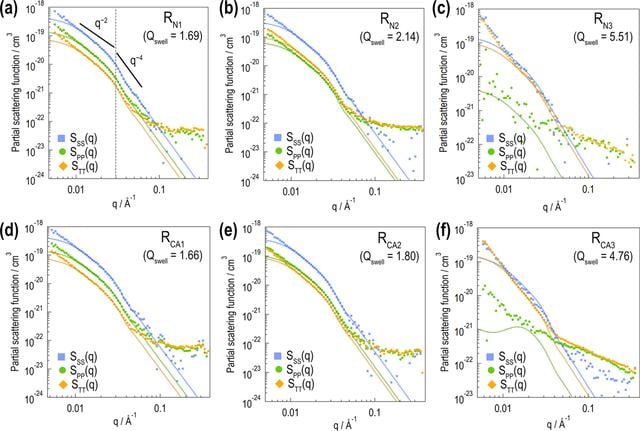

The obtained partial scattering functions. The top and bottom rows present the results for the rubber samples without and with the silane coupling agent, respectively. In each panel, the blue squares, green circles and orange diamonds indicate the experimentally obtained SSS(q), SPP(q) and STT(q), respectively. The SSS(q), SPP(q) − SG(q) and STT(q) − SG(q) profiles numerically calculated from the sphere collection model are shown by the dotted-line curves.
