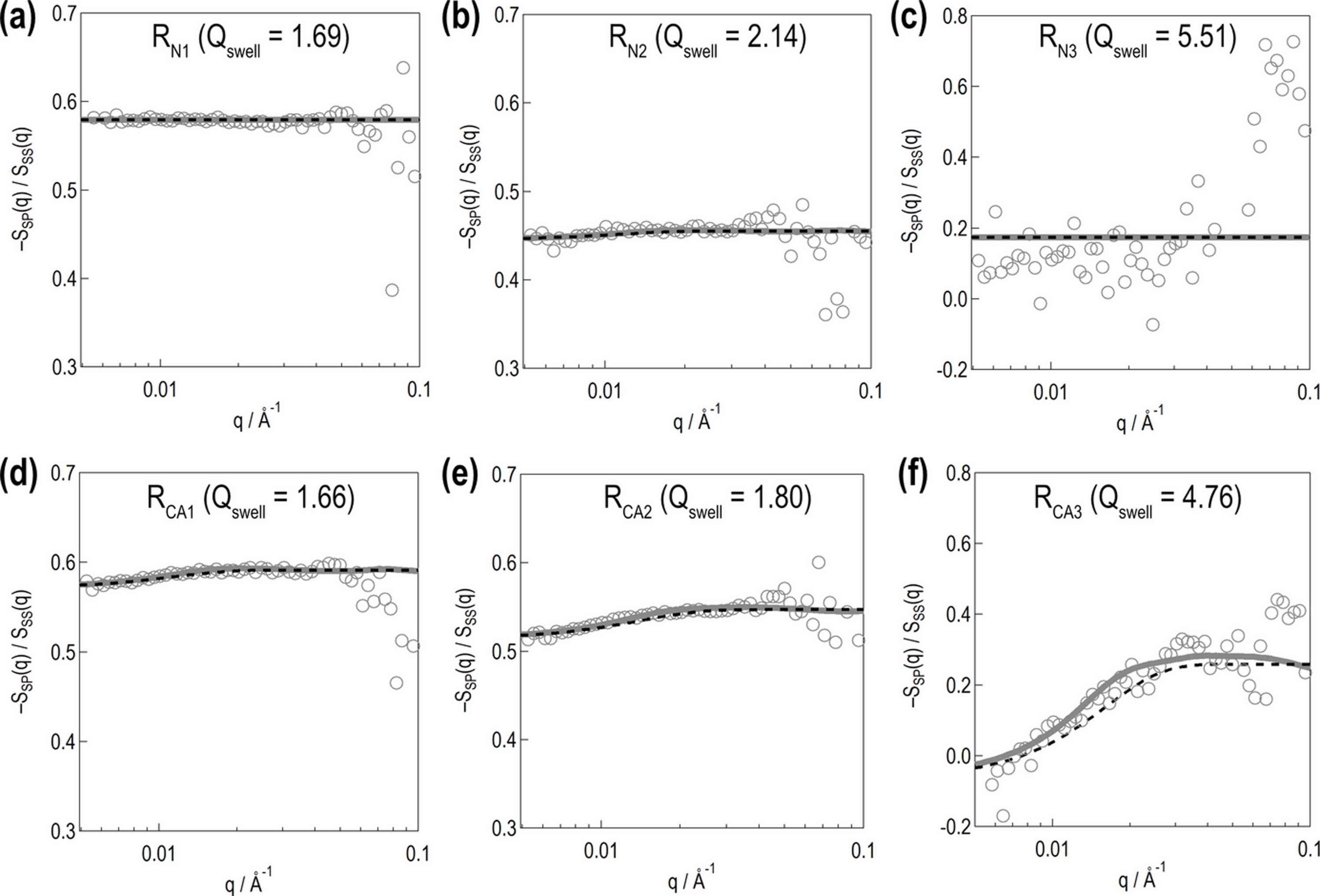

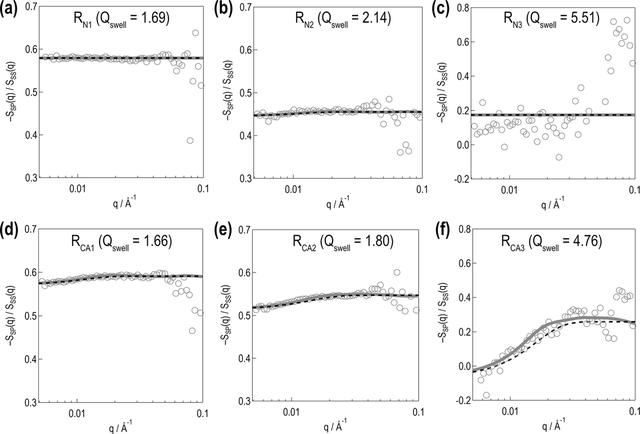

Figure 8
−SSP(q)/SSS(q) profiles. The top and bottom rows present the results for the rubber samples without and with the silane coupling agent, respectively. In each panel, the unfilled gray circles represent the experimentally obtained results, and the gray solid-line curves represent the profiles numerically calculated from the structure model. Here, the smear effect is considered. The black dashed-line curves indicate the numerical calculation results obtained using the approximate equation (38)[link].
