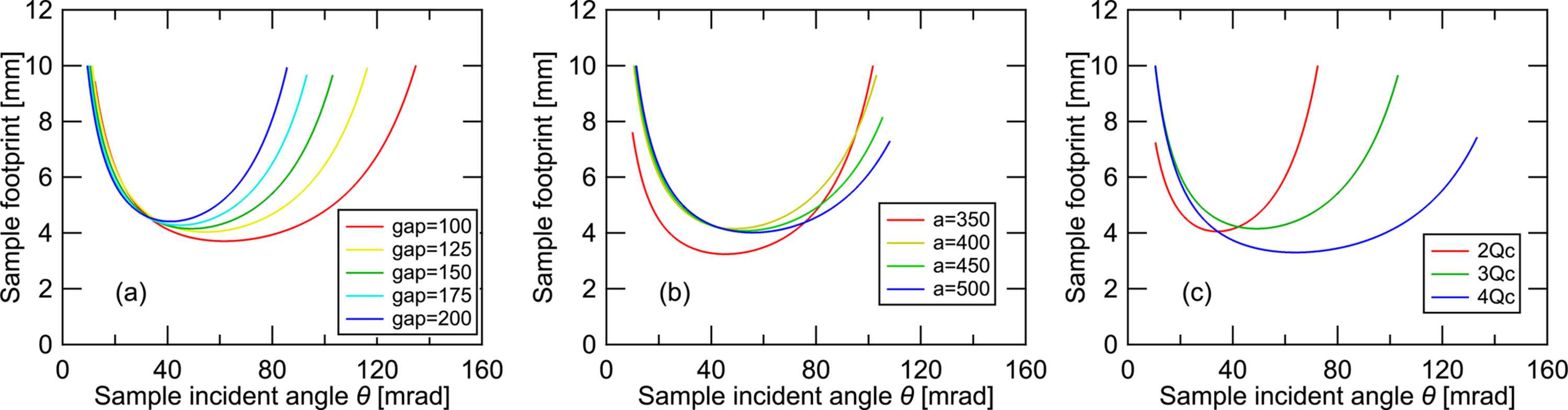

Figure 2
Beam footprint at the sample as a function of incident angle. (a) Effect of changing the mirror–sample gap. (b) Effect of changing the focal distance. (c) Effect of changing the multilayer period of the polychromator. The virtual-source size is adjusted so that the maximum footprint is ∼10 mm in all cases.
