Magnetic structure in the two-dimensional van der Waals ferromagnet Fe3GaTe2

Chang, P.-C.; Hammouda, S.; Tung, Y.-H.; Zhou, Y.; Kibalin, I.; Ouladdiaf, B.; Du, C.-H.; Su, Y.

doi:10.1107/S160057672600230X

Journal of Applied Crystallography Journal of Applied
Crystallography

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

Figure 3

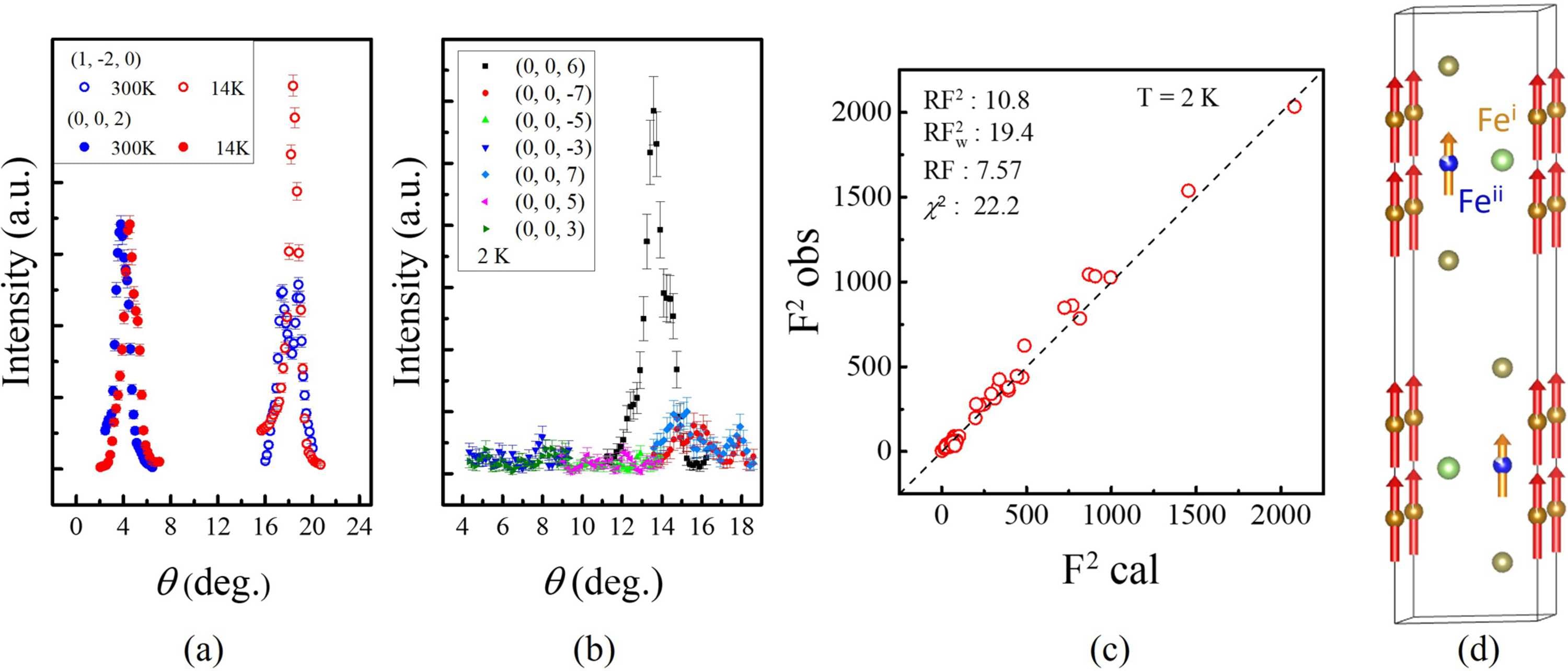

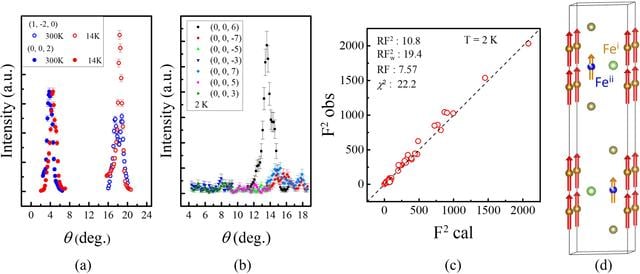

(a) The temperature dependence of the 002 and $[1 {\overline 2} 0]$ reflections in single-crystal neutron diffraction. (b) The diffraction signals of 00l (l = 2n + 1) and 006 at 2 K. (c) The refinement results of the magnetic structure with the atomic structure at 2 K. (d) The magnetic structure refinement result with the space group P6₃/mm′c′. The magnetic moment of Feⁱ is larger than that of Feⁱⁱ.

JOURNAL OF
APPLIED
CRYSTALLOGRAPHY

ISSN: 1600-5767

Volume 59| Part 3| June 2026| Pages 809-815

https://doi.org/10.1107/S160057672600230X
