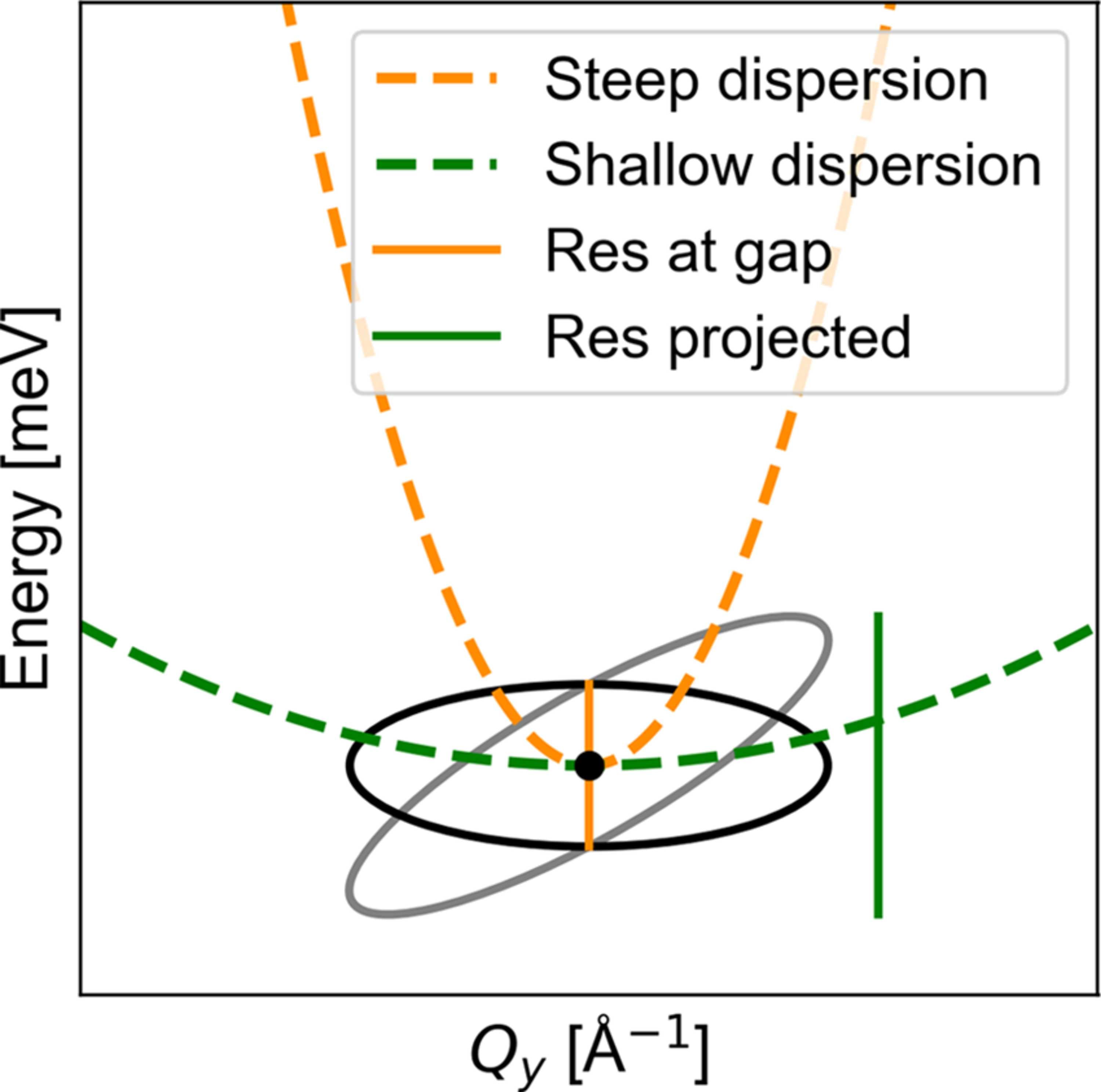

Figure 3
The intrinsic instrumental energy resolution at a specific Q, shown in orange, and the projected effective resolution, shown in green. For a shallow dispersion, one should use the projected resolution (green), while for a steep dispersion (orange), the energy resolution at a specific Q is more correct. For our approximation, we do not see the correlations between Q and E as in the real case (grey ellipsis), so we assume an ellipsis with no tilt (black) and with the energy resolution depending on the steepness of the dispersion.
