Figure 2

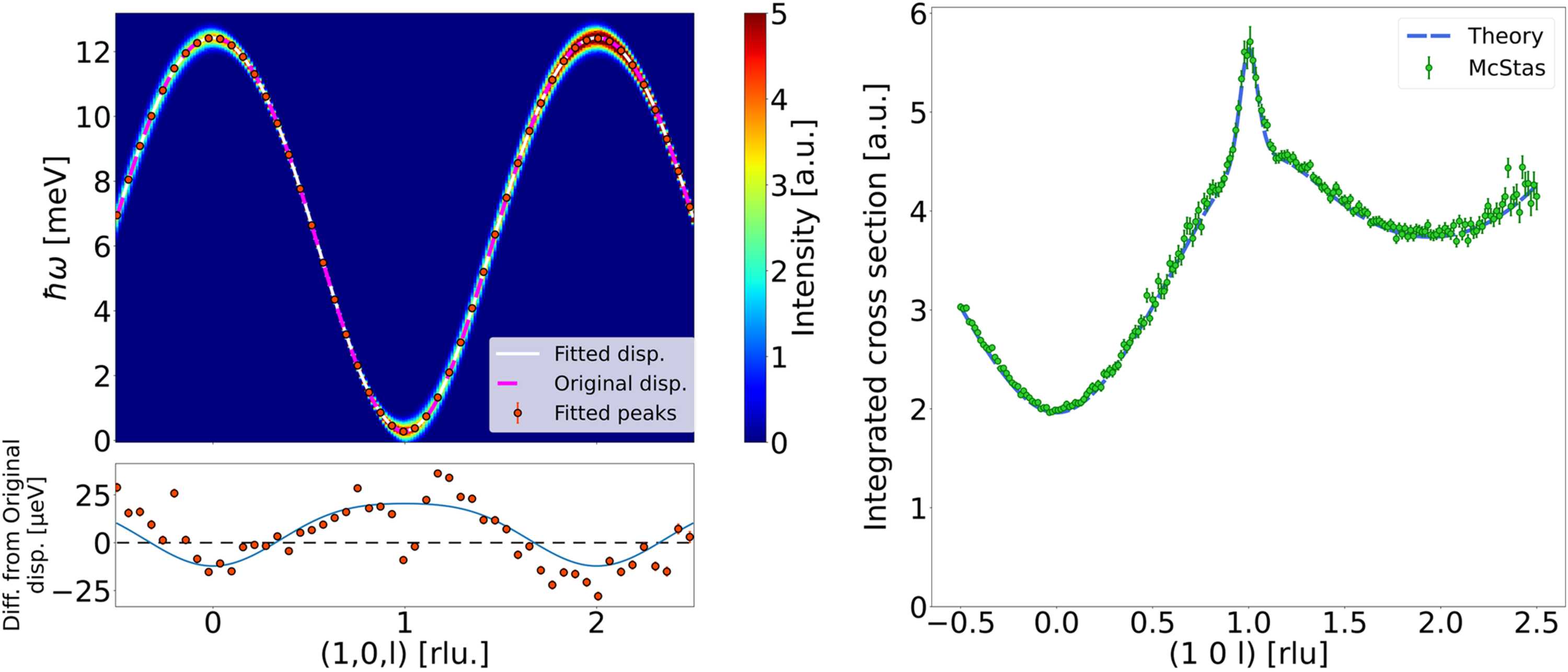

Simulated data for the ferromagnetic systems. (Top left) Simulated dispersion compared with theory. Red points show the fitted peak positions. The solid white line shows the dispersion calculated from the fitted parameters and the dashed magenta line shows the dispersion calculated from the original model parameters. (Bottom left) The difference between the fitted peak positions and the original dispersion (red points), and the difference between the fitted dispersion and the original dispersion (solid line). Ideally, they should be as close to zero as possible (dashed line). (Right) Integrated differential cross section compared with theory.
