Figure 3

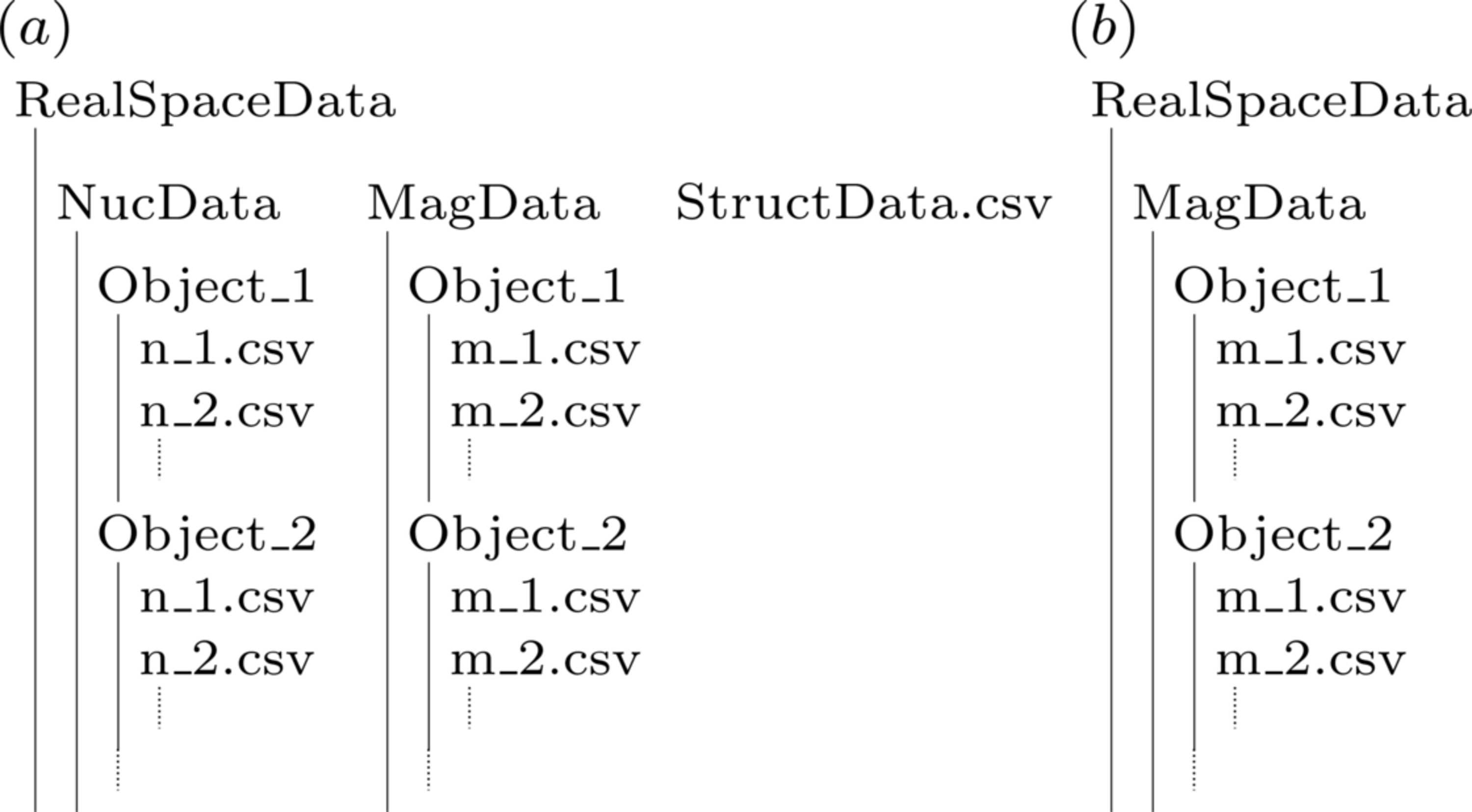

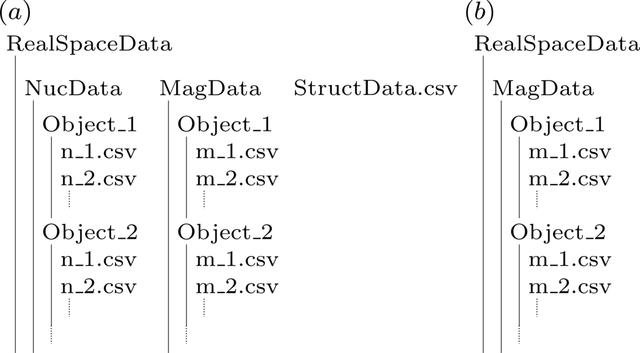

Organization of the real-space input data used by NuMagSANS. (a) General case in which all input channels are active: nuclear SLD data (NucData), magnetic vector-field data (MagData) and an optional structural description (StructData.csv) defining the spatial arrangement of multiple objects. This setup enables simulations ranging from fully dilute ensembles (no interparticle interference) to ordered or densely packed systems that exhibit structure factor effects. Users may either represent many individual particles or encode the entire sample in a single object. (b) Case with only magnetic data activated, corresponding to code listing in Section 3.2[link]. This situation corresponds to a dilute particle system, since no structural data are specified.
