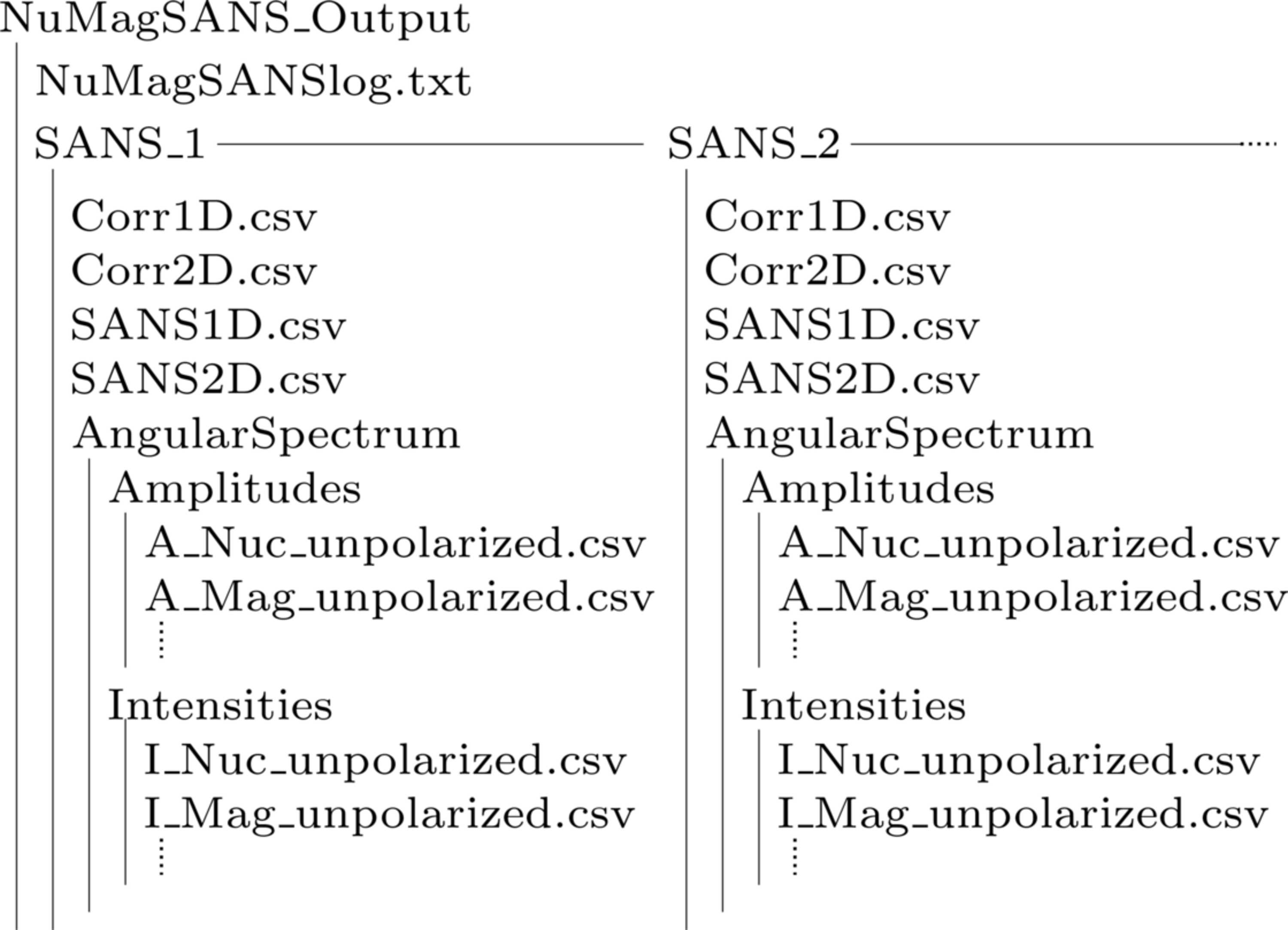

Figure 4
Directory structure of the NuMagSANS_Output folder generated by NuMagSANS. The file NuMagSANSlog.txt acts as a metadata record of all program steps and the user-defined settings specified in NuMagSANSInput.conf. Depending on how many parameter sets were requested (e.g. applied field values), the output contains several subdirectories SANS_i. Each SANS_i directory includes the two-dimensional SANS cross section (SANS2D.csv); the azimuthally averaged intensity I(q) according to equation (30) (SANS1D.csv); the two-dimensional real-space correlation function Mathematical equation from equation (36) (Corr2D.csv); and the one-dimensional correlation and pair-distance distribution functions c(r) and p(r), defined in equations (34) and (35) (Corr1D.csv). Furthermore, each directory may contain an AngularSpectrum folder, which stores the modal sine and cosine intensities Mathematical equation computed from equation (31) and the corresponding normalized modal amplitudes Mathematical equation defined in equation (33).
