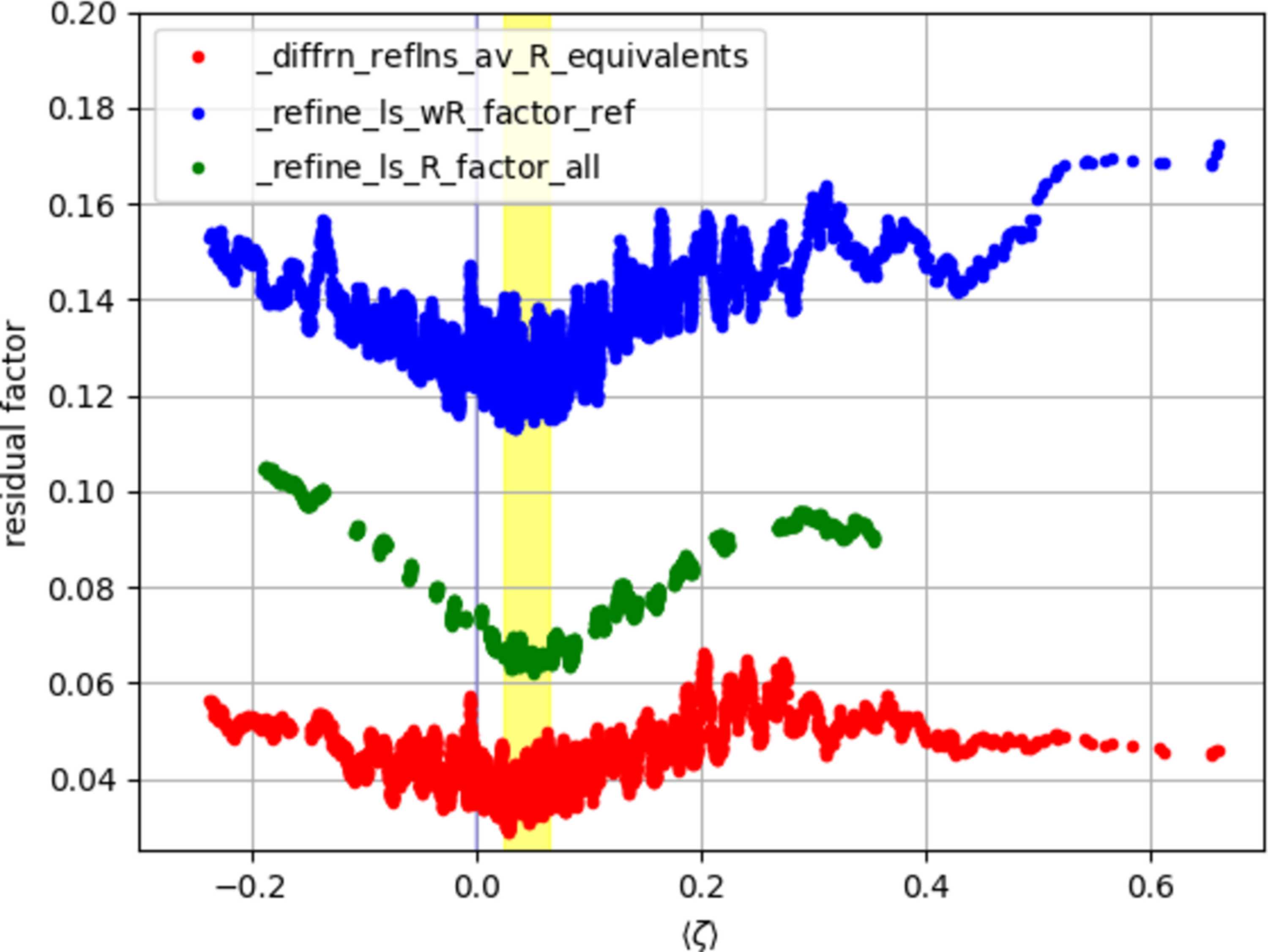

Figure 3
Residual factors (y axis) plotted as moving averages over a window of 50 consecutive data points as a function of 〈ζ〉 (x axis). Blue: _refine_ls_wR_factor_ref. Red: _diffrn_reflns_av_R_equivalents. Green: _refine_ls_R_factor_all. The plot contains empty spaces where individual data points were not available. The averaging continues only when 50 or more data sets were available in a row with the desired value due to the chosen window. Different residual factors show their minimum values also for 〈ζ〉 > 0. The common minimum area for the three residual factors is shown as a yellow stripe.
