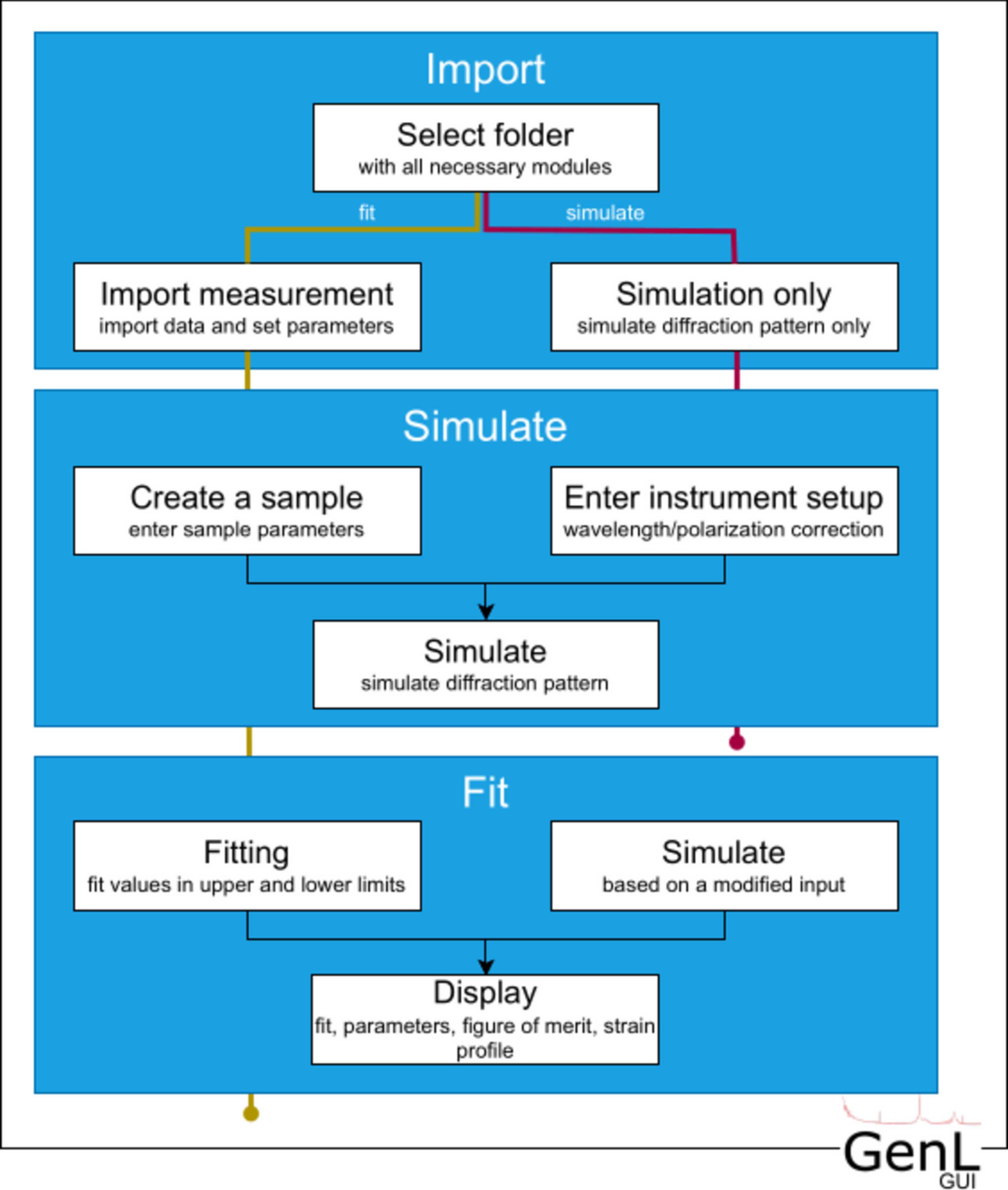

Figure 5
Flow chart of the GenL GUI. Blue boxes correspond to different tabs; white boxes represent processes in the tabs. There are two possible paths using the program: either first uploading data, simulating a diffraction pattern and fitting the data (yellow path) or only simulating a diffraction pattern based on the choice of input parameters (pink path).
